Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution FD72DN
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Cover strip 1 products available -
Mounting accessories 4 products available -
Ventilation plate 1 products available -
Coax connector 1 products available
Complete your system
Technical properties
Connection
-
Number of conduit inlets4
Voltage
-
Nominal voltage230 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN160 A
Equipment
-
Number of rails7
-
Number of rows7
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules168
Dimensions
-
Height1200 mm
-
Width550 mm
-
Depth193 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors0
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialMetal, Plastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

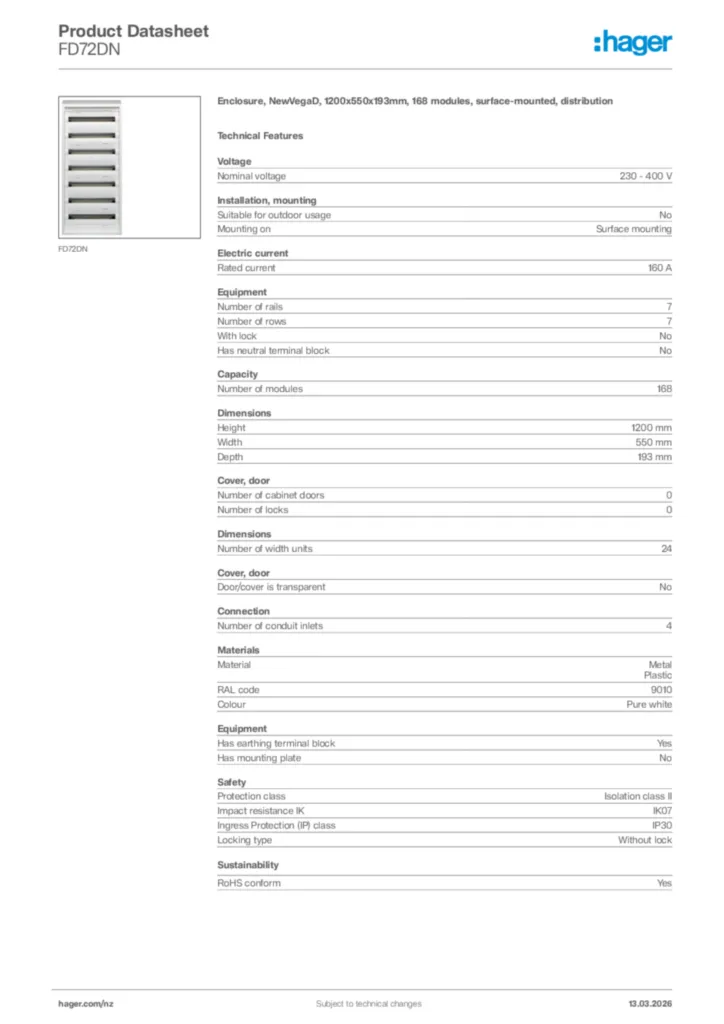

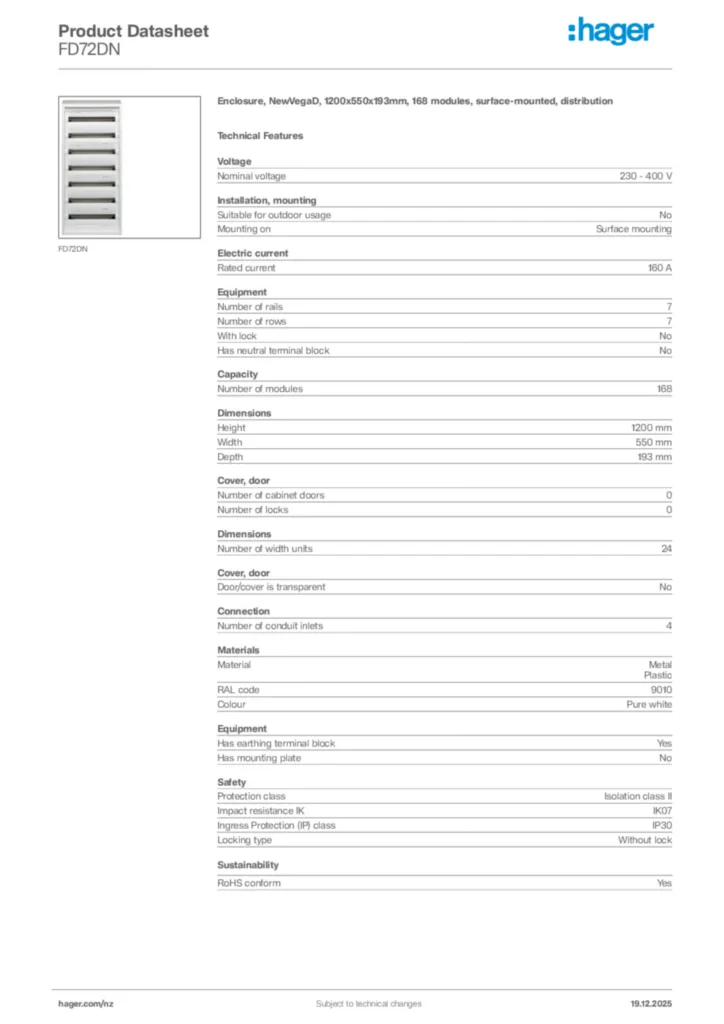

Hager Product data sheet FD72DN
Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution
PDF -
Handbook
Technical manual for New VegaD enclosures
Surface, flush boards and accessories (FR)
PDF11,49 MB
Technical manual for New VegaD enclosures
Surface, flush boards and accessories (EN)
PDF11,76 MB
Technical manual for New VegaD enclosures
Surface boards and accessories (AU light)
PDF5,53 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-11
PDF190,72 kB
