            EZL100 - Emergency light tester time relay 230V AC
            EZL100 - Emergency light tester time relay 230V AC
            EZL100 - Emergency light tester time relay 230V AC
            • DIN rail-­mounted devices

            Emergency light tester time relay 230V AC EZL100

            EAN
            3250615600615
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in

            Emergency light tester time relay 230V AC

            EZL100

            EZL100 - Emergency light tester time relay 230V AC
            EZL100 - Emergency light tester time relay 230V AC
            EZL100 - Emergency light tester time relay 230V AC
            • Technical properties
            • Environmental value
            • Documentations
            • More products

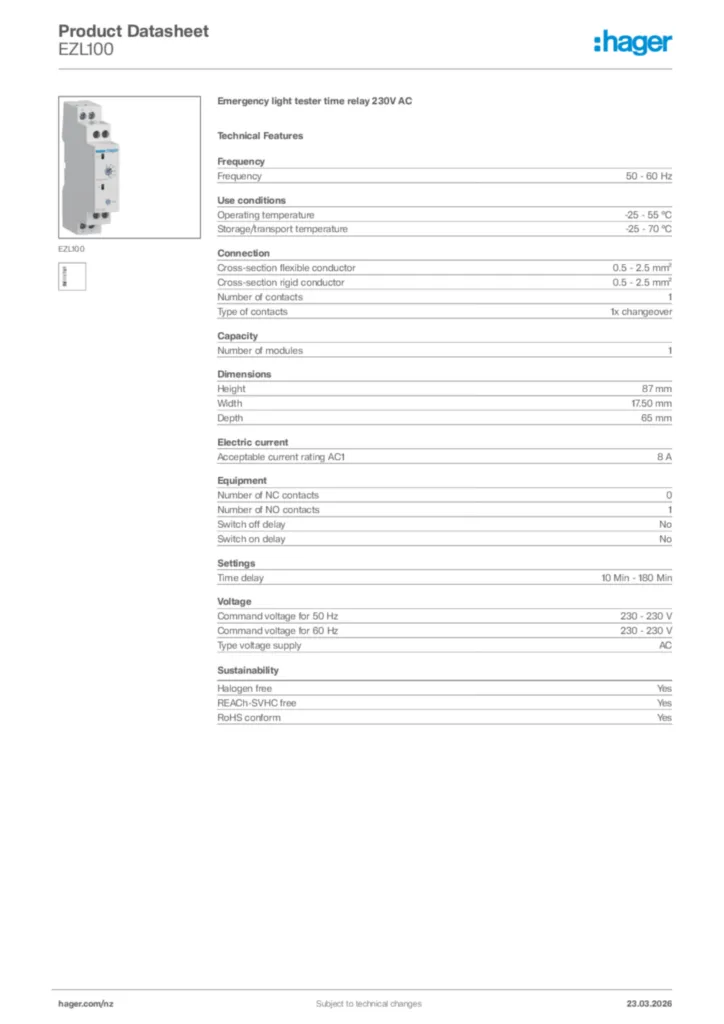

            Download the data sheet

            Technical properties

            Frequency
            • Frequency
              50 - 60 Hz
            Use condi­tions
            • Oper­ating temper­ature
              -25 - 55 °C
            • Stor­age/trans­port temper­ature
              -25 - 70 °C
            Connec­tion
            • Cross-sec­tion flex­ible conductor
              0.5 - 2.5 mm²
            • Cross-sec­tion rigid conductor
              0.5 - 2.5 mm²
            • Number of contacts
              1
            • Type of contacts
              1x changeover
            Capa­city
            • Number of modules
              1
            Dimen­sions
            • Height
              87 mm
            • Width
              17,50 mm
            • Depth
              65 mm
            Elec­tric current
            • Accept­able current rating AC1
              8 A
            Equip­ment
            • Number of NC contacts
              0
            • Number of NO contacts
              1
            • Switch off delay
              No
            • Switch on delay
              No
            Settings
            • Time delay
              10 Min - 180 Min
            Voltage
            • Command voltage for 50 Hz
              230 - 230 V
            • Command voltage for 60 Hz
              230 - 230 V
            • Type voltage supply
              AC

            Environmental value

            We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

            RoHS conform Yes
            REACH conform Yes
            Halogen free Yes

            Certifications and documents

            PEP document International 2022-12-05
            PDF
            337,88 kB
            REACH declaration EZL100 (english)
            PDF
            103,10 kB
            RoHS declaration EZL100 (english)
            PDF
            103,59 kB

            Downloads

            • Product image

              Image EZL100  | Hager New Zealand

              Product Image EZL100

            • Installation manual

              Image Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-11-27  | Hager New Zealand

              Installation manual de-AT, de-DE, de-CH, en-AU, en-GB, en-NZ, en-US, fr-BE, fr-FR, fr-CH, it-IT, it-CH 2023-11-27

              PDF
              1,89 MB
            • Declaration of conformity

              Image EU Declaration of Conformity  | Hager New Zealand

              EU Declaration of Conformity

              Declaration of conformity en-GB, fr-FR 2024-01-04

              PDF
              315,22 kB
              Image UKCA Declaration of Conformity  | Hager New Zealand

              UKCA Declaration of Conformity

              Declaration of conformity en-GB, fr-FR 2024-01-04

              PDF
              269,58 kB
