Remote Control Dimmer universal 500W EVN002
EAN
3250617573931
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. However, this page remains available for information purposes. Please contact our Customer Service team on 1300 850 253 for more information.
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available
Technical properties
Voltage
-
Operating voltage195 - 253 V
-
Rated operational voltage Ue230 - 230 V
Connectivity
-
With bus system KNX radioNo
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGrey
-
RAL code7035
-
MaterialPlastic
Dimensions
-
Height85 mm
-
Width35 mm
-
Depth62 mm
Architecture
-
Control/operation elementSingle push button
Power
-
Power consumption during operation4,50 VA
-
Power consumption standby0,20 W
-
230 V incandescent and halogen lamp500 W
-
Power incandescent lamp500 - 500 W
Lighting
-
Dimmable 230 V LED lamp100 - 100 W
-
LED lamp power100 W
Use conditions
-
Operating temperature-10 - +45 °C
Connection
-
Cross-section rigid conductor1.5 - 6 mm²
-
Cross-section flexible conductor1.5 - 6 mm²
Capacity
-
Number of modules2
Texts
-
Dimming principleAutomatic load detection
-
FuseWith electronic short-circuit and overload protection
-
VoltageOthers
-
Installation modeFor mounting on DIN rail
-
Type of connectionWith screw terminals
-
JunctionConnection for non-illuminated push-buttons
-
Operation and controlNo Bluetooth interface
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

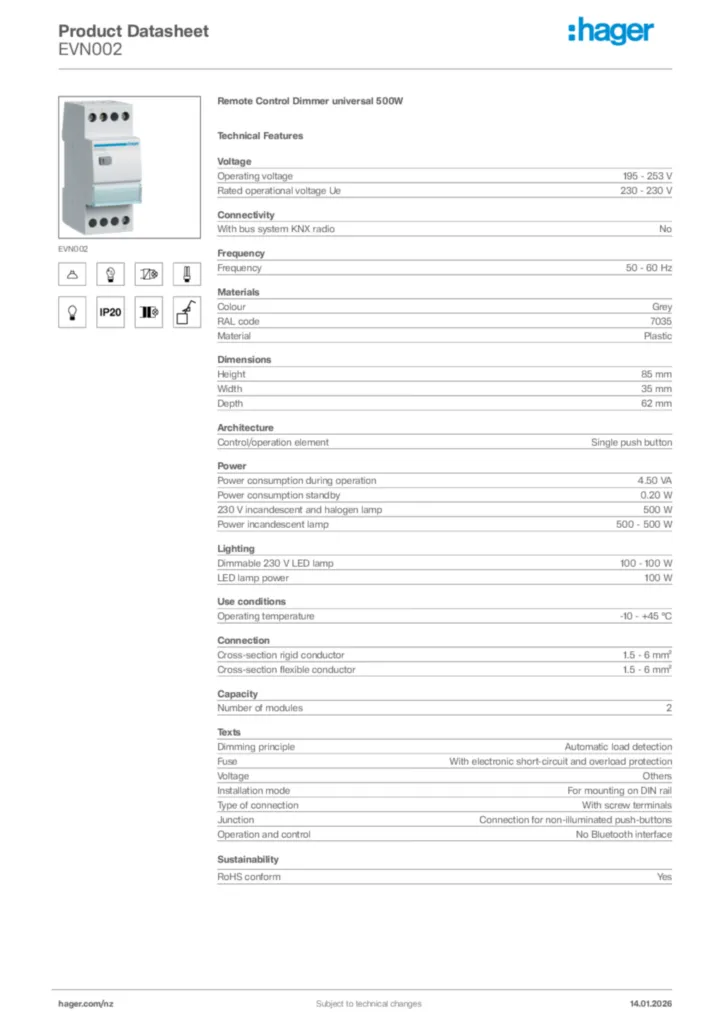

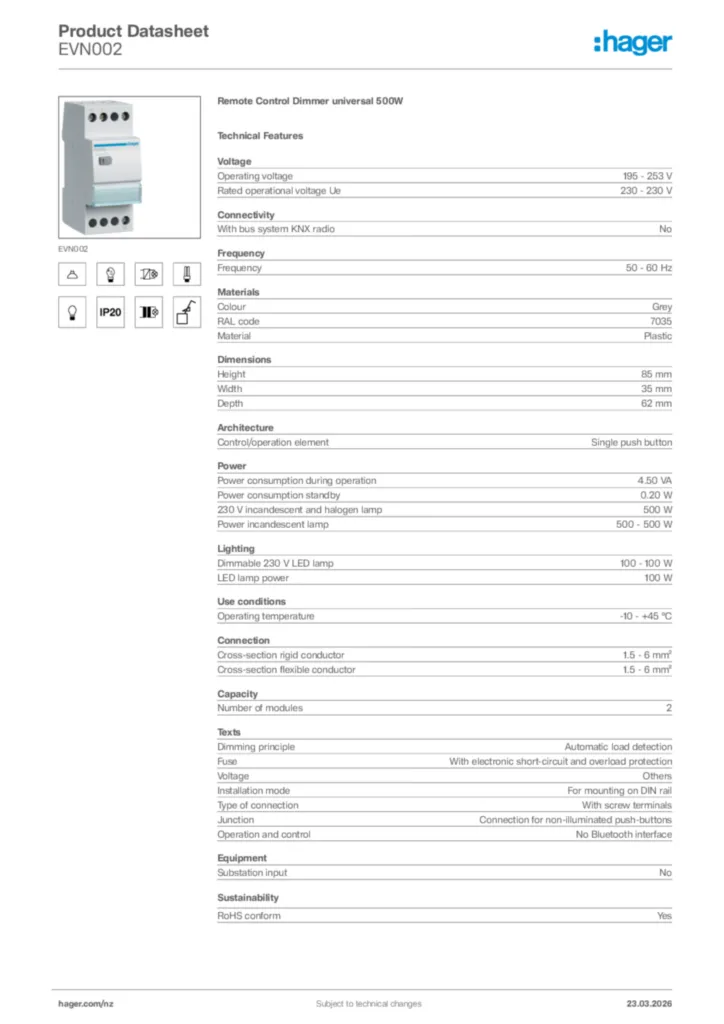

Hager Product data sheet EVN002
Remote Control Dimmer universal 500W
PDF
More documentation
