Multi-function time switch 1 channel bluetooth EGN100AU

EAN
3250618502459
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Multi-function time switch 1 channel bluetooth

EGN100AU

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

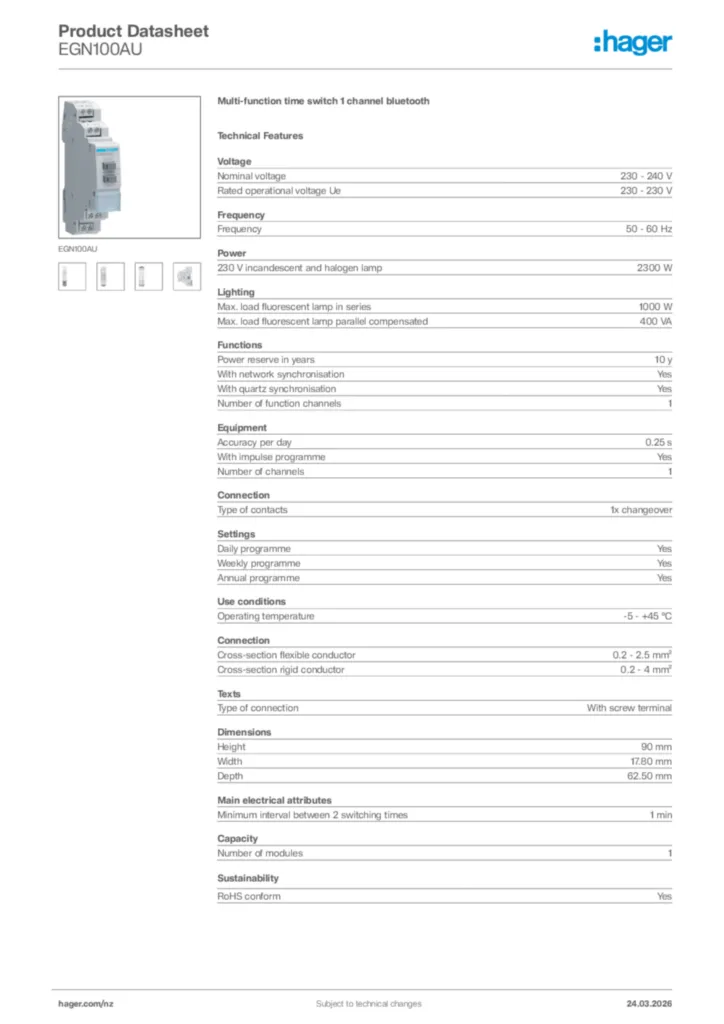

Download the data sheet

Complete your system

Optional accessories

  • See more (2)
    • Bright­ness sensor 2 products available

    Complete your system

    • Bright­ness sensor
    • EEN002

      Cell for twilight switch, flush mounted

      0.00 €  / *
    • EEN003

      Cell for twilight switch, wall mounted

      0.00 €  / *

    Technical properties

    Voltage
    • Nominal voltage
      230 - 240 V
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • 230 V incan­des­cent and halogen lamp
      2300 W
    Lighting
    • Max. load fluor­es­cent lamp in series
      1000 W
    • Max. load fluor­es­cent lamp parallel compensated
      400 VA
    Func­tions
    • Power reserve in years
      10 y
    • With network synchron­isa­tion
      Yes
    • With quartz synchron­isa­tion
      Yes
    • Number of func­tion chan­nels
      1
    Equip­ment
    • Accuracy per day
      0,25 s
    • With impulse programme
      Yes
    • Number of chan­nels
      1
    Connec­tion
    • Type of contacts
      1x changeover
    • Cross-sec­tion flex­ible conductor
      0.2 - 2.5 mm²
    • Cross-sec­tion rigid conductor
      0.2 - 4 mm²
    Settings
    • Daily programme
      Yes
    • Weekly programme
      Yes
    • Annual programme
      Yes
    Use condi­tions
    • Oper­ating temper­ature
      -5 - +45 °C
    Texts
    • Type of connec­tion
      With screw terminal
    Dimen­sions
    • Height
      90 mm
    • Width
      17,80 mm
    • Depth
      62,50 mm
    Capa­city
    • Number of modules
      1
    Main elec­trical attrib­utes
    • Minimum interval between 2 switching times
      1 min

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration EGN100AU (english)
    PDF
    103,10 kB
    RoHS declaration EGN100AU (english)
    PDF
    103,84 kB

    Downloads

    • Product image

      Image EGN100AU  | Hager New Zealand

      Product Image EGN100AU

    • Installation manual

      Image Installation manual fr-FR, en-GB, es-ES, pt-PT 2024-08-30  | Hager New Zealand

      Installation manual fr-FR, en-GB, es-ES, pt-PT 2024-08-30

      PDF
      441,44 kB
    • Declaration of conformity

      Image Declaration  | Hager New Zealand

      Declaration

      Declaration of conformity International 2022-03-29

      PDF
      120,39 kB
      Image Declaration of conformity International 2023-04-19  | Hager New Zealand

      Declaration of conformity International 2023-04-19

      PDF
      316,26 kB
