Motion and Presence Detectors

Movement detector 360° surface mounted with normally open contact EE804A

EAN

3250612258765

Packaging

1 Piece

Technical properties
Documentations
More products

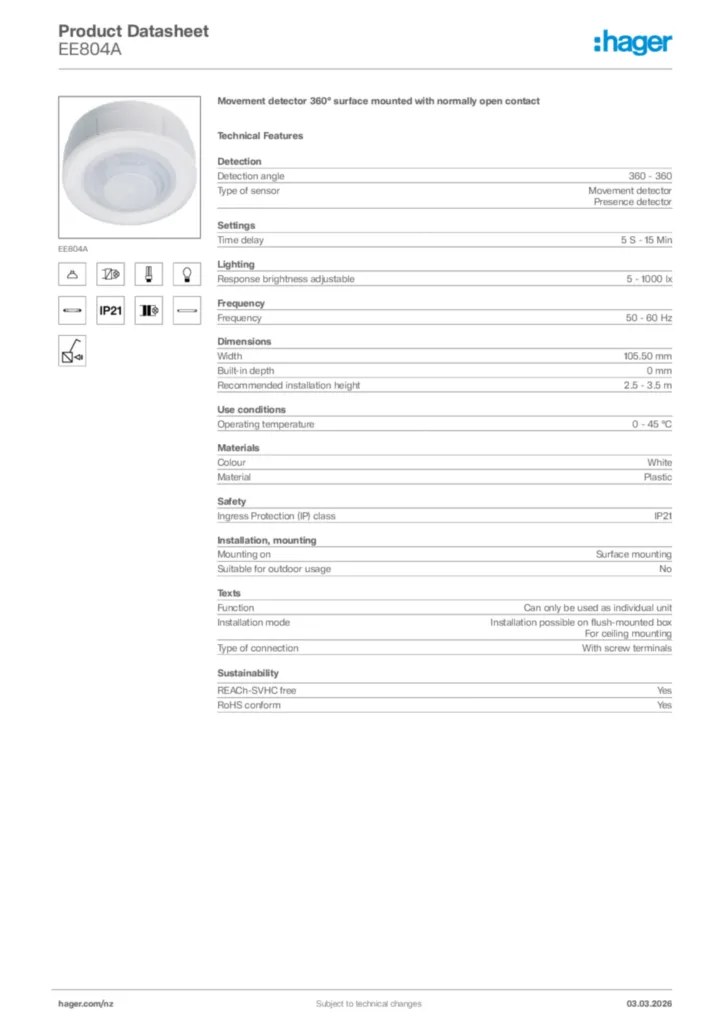

Download the data sheet

Technical properties

Bus system

Without

Function

can only be used as individual unit

Rated operational voltage Ue

230 V
Frequency

50/60 Hz

Height of installed product

50 mm
Dimensions (Ø x H)

90 x 61 mm
Width of installed product

105.5 mm
Recommended installation height

2.5…3.5 m

Supply voltage

230 V +10% / -15%

Detection angle

360 °
Detection angle

360 °
Detection field Ø, on floor

≈ 6 m
Frontal detecting distance

6 m
Side detecting distance

6 m

Colour

white
Material

plastic

Response brightness, adjustable

≈ 5…1000 lx
Brightness measurement range

5 / 1000 Lux

230V LED lamps

20 x 20 W

Maximum Mounting Height

4 m
Mounting type

surface-mounted
Installation mode

for ceiling mounting ; Installation possible on flush-mounted box

Number of contacts

1
Type of connection

with screw terminals

Response value sensitivity adjustable

No
Delay time, adjustable

5 s…30 mn
Setting

with potentiometers for setting the response brightness and delay time without dismantling

Component

with fitting material

Angle of horizontal detection

360 °

Protection class

isol.class II

Operating temperature

-5…45 °C
Storage/transport temperature

-25…70 °C
Energy-saving

energy saving by means of presence and brightness-dependent ON and OFF switching of light ; low intrinsic energy requirement

Application, usage

Motion detector
Main design line

Motion detectors

Downloads

Product image

Product Image EE804A
ProductNotice

Manual for EE804A-EE805A Presence and motion detector (en, 2017-09)

PDF

936 KB
User brochure

Motion and Presence Detectors Brochure

PDF

268 KB
ProductECDeclaration

Declaration

PDF

126 KB
ProductEnvironmentProfile

Product environmental profile for EE804A

PDF

439 KB
