Svartedals school, Biskopsgården
Svartedalsschool, Biskopsgarden is a state-of-the-art, 2,500 square metre school in Gothenburg and can accommodate 750 students from grades four to nine. When it comes to electrical installations, everything is focused on giving students the best learning facilities possible with optimised building consumption and energy management solutions, while being well adapted to anticipate future innovations.
Get up close and personal with this fabulous learning establishment!
"The reason we chose Hager‘s products was because we got a good confidence in them. During the project, we got a lot of help."
Johan Lövgren
Supervisor, Elect Service AB
A modern school
equipped for the future!
At Svartedalsskolan in Biskopsgården, 66 per cent of pupils were eligible for upper secondary school in 2019. This is well below the country‘s average of 85%. In recent years, the Gothenburg region has therefore invested in raising average grades. Among other things, a completely new school has been built.

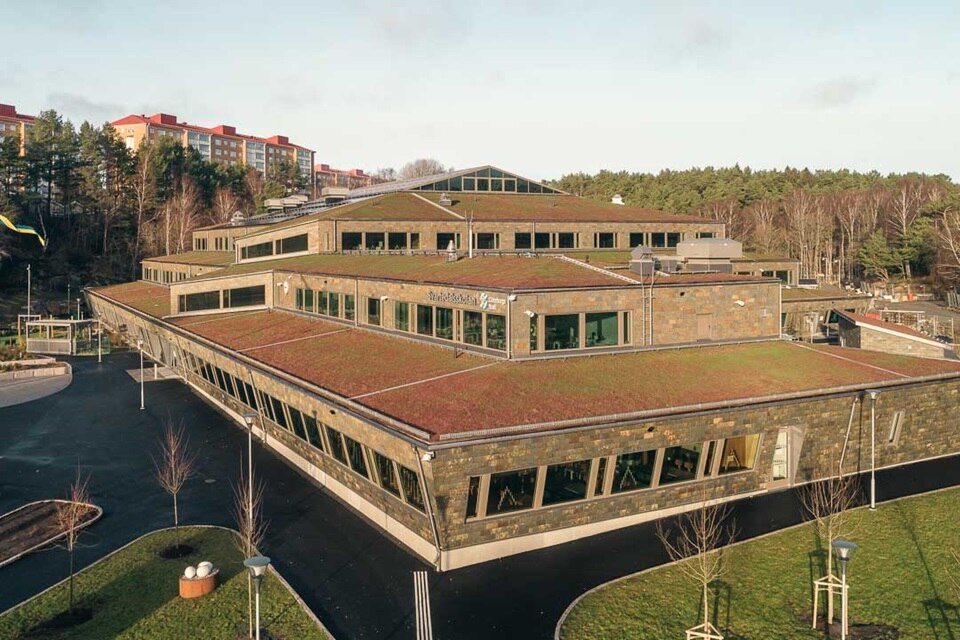

The new school, which was inaugurated during the autumn semester 2020, is both large and modern. The architect‘s office Wahlström and Steijner gave the building a pyramid-like shape so that it would blend in among the surrounding hills.
The 12,500 square meter building can accommodate 750 students in grades four to nine. In addition to school premises, there is also a library, dining room, a large kitchen and a sports hall. An over-glazed atrium has also been created as a bonus area for exhibitions, workshops and performances. When it comes to electrical installations, everything is well thought out and adapted for the future.
Highlighted solutions at Svartedalsschool
Univers 400 A, 12 centres
The wall-mounted cabinets are in sheet metal with IP-class IP44, which gives a very robust quality. The cabinets are equipped with the flexible universal system and equipped with main switches, diazed fuses and a number of dwarf, person and earth fault switches.
Golvbox VE09
The floor boxes ordered for Svartedalsskolan are easy to adjust and are adapted for a wide selection of accessories. The flexibility made it easy for the installers to choose Hager at an early stage as they did not know what would sit in the floor boxes. It was easy to retrofit the appliance box, which was then equipped with products according to the customer‘s wishes.installations, everything is well thought out and adapted for the future.
Window sill duct BRA 65x130
Since the horizontally mounted window sill ducts needed to be adapted on site, the choice fell on aluminum as it is a smooth material to work with. The installation was both simple and fast because the joints are self-grounding and the sockets front mounted. For the classrooms, standing channels were ordered in special lengths.
Univers floor cabinet 1600 A
Since the school building requires very large distributions, a Univers floor cabinet 1600 A is used as an incoming service. The cabinet is equipped with power, knife and diazed fuses as well as energy meters for under metering. The distribution feeds the other twelve centers with force.
