    EAN-Nr.
    3250617279789
    Packaging
    10 Pieces
    • muse - sockets

    15A SINGLE SWITCHED SOCKET, Aurora Silver WGMS115SAS

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Also available in

    Product colour - Aurora silver
    Aurora silver
    Aurora silver
    Bronze
    Bronze
    Gold
    Gold
    Interstellar grey
    Interstellar grey
    Knight black
    Knight black
    On/off switch
    No
    No
    Yes
    Yes

    15A SINGLE SWITCHED SOCKET, Aurora Silver

    WGMS115SAS

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 1 products available

    Referenced by

    • WGMCV1AS

      1 GANG FRAME, Aurora Silver
      0.00 €  / *

    Technical characteristics

    Voltage
    • Rated voltage
      250 V
    • Output voltage
      0-0 V
    Elec­tric current
    • Output current
      0
    • Rated current
      15 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consump­tion standby
      0
    Mater­ials
    • Colour
      Aurora silver
    • Surface finish
      Matt
    • Material
      Polycar­bonate (PC)
    • Treat­ment
      Coated
    • Contains recycled material (% of total plastic weight)
      0
    Dimen­sions
    • Height
      22 mm
    • Width
      86 mm
    • Depth
      22 mm
    • Built-in depth flush-­mounted boxes
      35 mm
    • Built-in depth
      22 mm
    Cable
    • Cable length
      0
    Connec­tion
    • Connect­or/plug type
      British Standard
    • Cross-sec­tion flex­ible conductor without wire end sleeve
      0,08 - 4 mm²
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Back
    Connectivity
    • Type of connec­tion
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connect­or/plug type USB
      British Standard
    Equip­ment
    • Connect­or/plug type socket outlet
      British Standard
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capa­city
    • Number of modules
      0
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK02
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP document en-GB 2024-09-27
    PDF
    423,48 kB
    REACH declaration WGMS115SAS
    PDF
    RoHS report WGMS115SAS
    PDF

    Downloads

    • Image WGMS115SAS | Hager

      Product Image WGMS115SAS

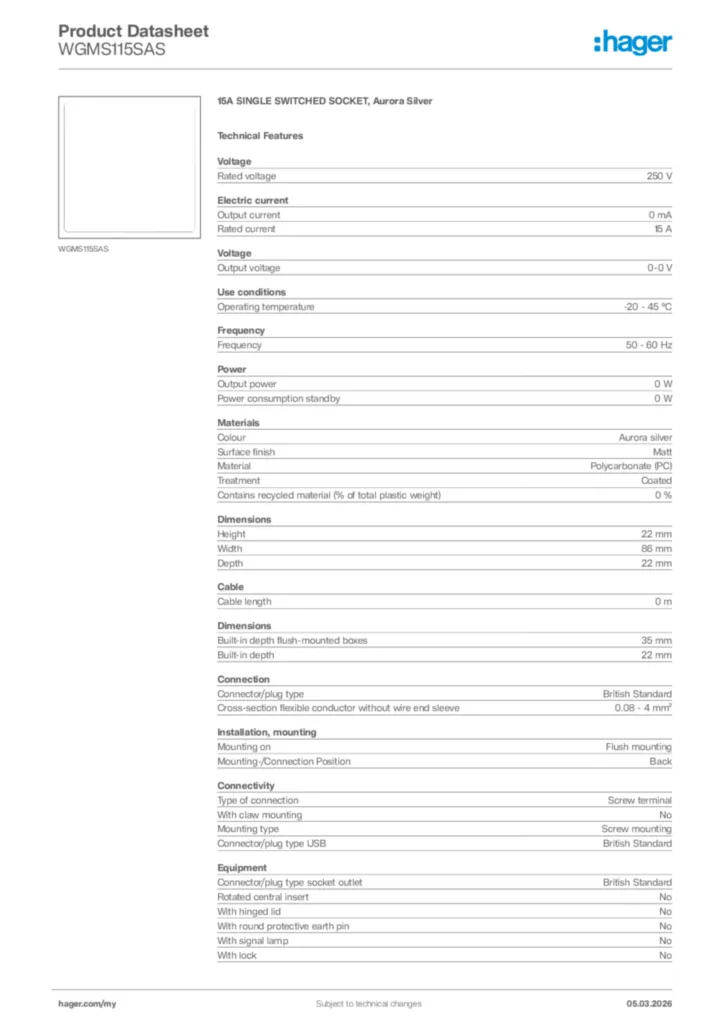

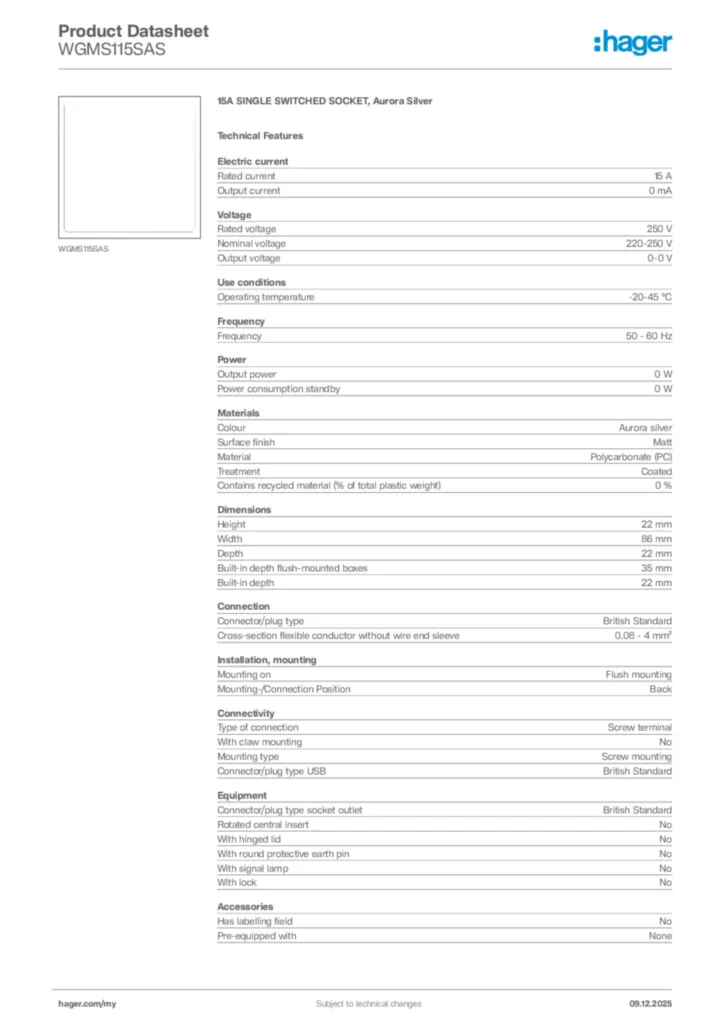

    • Product datasheet

      Image Hager Product data sheet WGMS115SAS | Hager

      Hager Product data sheet WGMS115SAS

      15A SINGLE SWITCHED SOCKET, Aurora Silver

      PDF

    • Installation manual

      Image Installation manual en-GB 2024-09-26 | Hager

      Installation manual en-GB 2024-09-26

      PDF
      399,75 kB

    • Catalogue

      Image Hager Muse catalogue MY | Hager

      Hager Muse catalogue MY

      Catalogue en-GB 2025-10-30

      PDF
      4,67 MB

    • Declaration of conformity

      Image BOC_CE_CERT_ALU-B_IT_EN_28102022 | Hager

      BOC_CE_CERT_ALU-B_IT_EN_28102022

      Declaration of conformity en-GB 2022-12-29

      PDF
      91,93 kB
