Encl.,Volta,flush,1x12MOD,IP30,Version Singapore VU12NSG

EAN-Nr.
3250616615205
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Encl.,Volta,flush,1x12MOD,IP30,Version Singapore

VU12NSG

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

Complete your system

Optional accessories

  • Lock system 2 products available

Complete your system

  • Lock system
  • VZ302N

    Key lock, Volta, standard, for installation in door handle
    0.00 €  / *
  • VZ303

    VOLTA LOOK FOR STANDARD DOOR HANDLE
    0.00 €  / *

Technical characteristics

Voltage
  • Nominal voltage
    400 - 400 V
Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Flush mounting
Elec­tric current
  • Rated current
    63 A
Power
  • Maximum power loss per cabinet at ΔT=20K
    12 W
Equip­ment
  • Number of rails
    1
  • Number of rows
    1
  • Number of section in width
    1
  • With lock
    No
  • Has neutral terminal block
    Yes
  • Has earthing terminal block
    Yes
  • Has mounting plate
    No
Capa­city
  • Number of modules
    12
  • Number of half modules terminals per rail
    24
Func­tions
  • With conduit inlets
    Yes
Dimen­sions
  • Height
    356 mm
  • Width
    348 mm
  • Depth
    94,50 mm
  • Built-in height
    340 mm
  • Built-in width
    335 mm
  • Built-in depth
    90 mm
  • Number of width units
    12
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    0
  • Door/­cover is trans­parent
    No
Connectivity
  • Mounting type
    Screw mounting
Mater­ials
  • Material
    Plastic
  • RAL code
    9010
  • Colour
    Pure white
  • Ultra­vi­olet-res­istant
    Yes
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Snap on lock, Without lock
  • Glow wire test
    650 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
PDF
25,39 MB
Hager REACH declaration VU12NSG
PDF
Hager RoHS report VU12NSG
PDF

Downloads

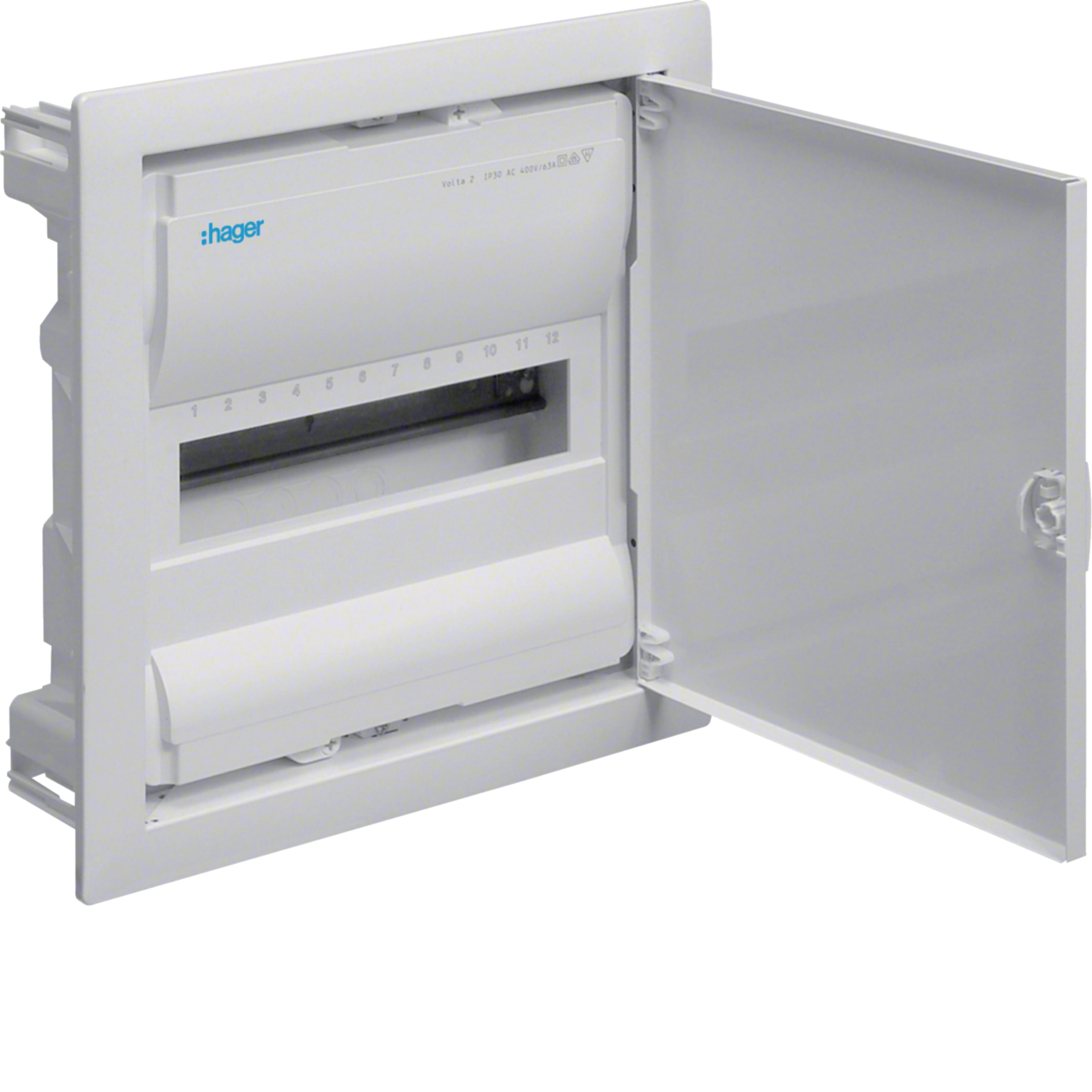

  • Image VU12NSG | Hager

    Product Image VU12NSG

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2023-08-16

    PDF
    359,72 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-12-15

    PDF
    312,77 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-12-15

    PDF
    300,17 kB
