    • VF212PM
    EAN-Nr.
    3250616463981
    Packaging
    1 piece
    • golf enclos­ures

    Small distributor,golf,flush,2row,24M,IP40,MS-terminal,N+PE,white door VF212PM

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

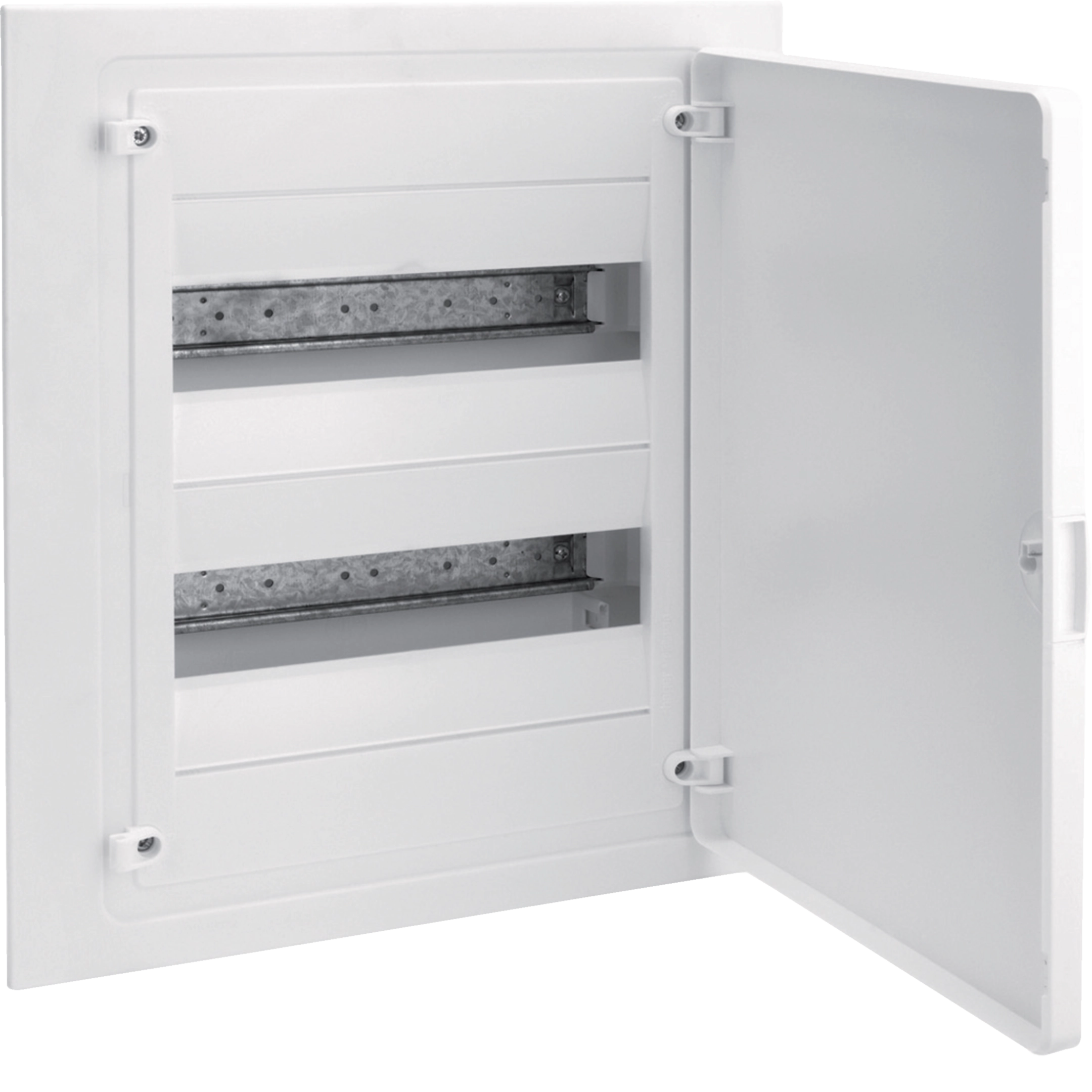

    Small distributor,golf,flush,2row,24M,IP40,MS-terminal,N+PE,white door

    VF212PM

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Cover strip 1 products available
    • Lock system 1 products available
    • Door/­op­er­ating panel 1 products available
    • Accessor­ies/s­pare parts for terminals 1 products available

    Complete your system

    • Cover strip
    • Lock system
    • Door/­op­er­ating panel
    • Accessor­ies/s­pare parts for terminals
    • JP024

      Cover strip, universal, 24M, for metal sheet cover
      0.00 €  / *
    • VZ794N

      Key lock, golf, flush, surface mounting disributor, 2keys, accessory
      0.00 €  / *
    • VZ604N

      Door, golf, white, accessory, for VF/VS212
      0.00 €  / *
    • VZ865

      terminal support MS 12M 5x16, 6x10
      0.00 €  / *

    Technical characteristics

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Flush mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      2
    • Number of rows
      2
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      24
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      418 mm
    • Width
      382 mm
    • Depth
      97,50 mm
    • Built-in height
      382 mm
    • Built-in width
      318 mm
    • Built-in depth
      72 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      No
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    Hager REACH declaration VF212PM
    PDF
    Hager RoHS report VF212PM
    PDF

    Downloads

    • Image VF212PM | Hager

      Product Image VF212PM

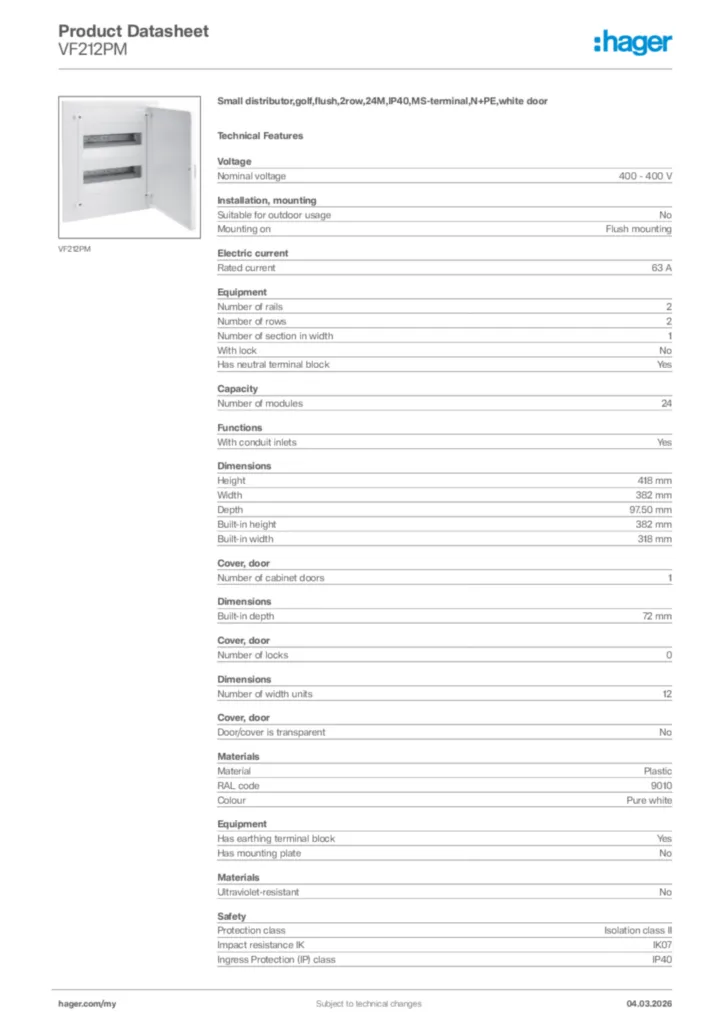

    • Product datasheet

      Image Hager Product data sheet VF212PM | Hager

      Hager Product data sheet VF212PM

      Small distributor,golf,flush,2row,24M,IP40,MS-terminal,N+PE,white door

      PDF

    • Brochure

      Image golf enclosure brochure MY | Hager

      golf enclosure brochure MY

      Brochure en-GB 2025-08-25

      PDF
      3,88 MB

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-06-25 | Hager

      Declaration of conformity en-GB 2025-06-25

      PDF
      487,74 kB
