    • Home
    • Catalogue
    • Energy distri­bu­tion
    • Small distri­bu­tion boards up to 160 A
    • vega
    • VB118J
    EAN-Nr.
    3250611019428
    Packaging
    1 piece
    • vega

    Small distributor,vega,surface,1row,18M,IP40,brass-terminal,PE,white door VB118J

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Small distributor,vega,surface,1row,18M,IP40,brass-terminal,PE,white door

    VB118J

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      90 A
    Equip­ment
    • Number of rails
      1
    • Number of rows
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      18
    Dimen­sions
    • Height
      325 mm
    • Width
      400 mm
    • Depth
      146 mm
    • Number of width units
      18
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Poly­styrene (PS)
    • RAL code
      9010
    • Colour
      White
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Encl.,gamma,surface m.,26 M,version FR
    PDF
    1,48 MB
    Hager REACH declaration VB118J
    PDF
    Hager RoHS report VB118J
    PDF

    Downloads

    • Image VB118J | Hager

      Product Image VB118J

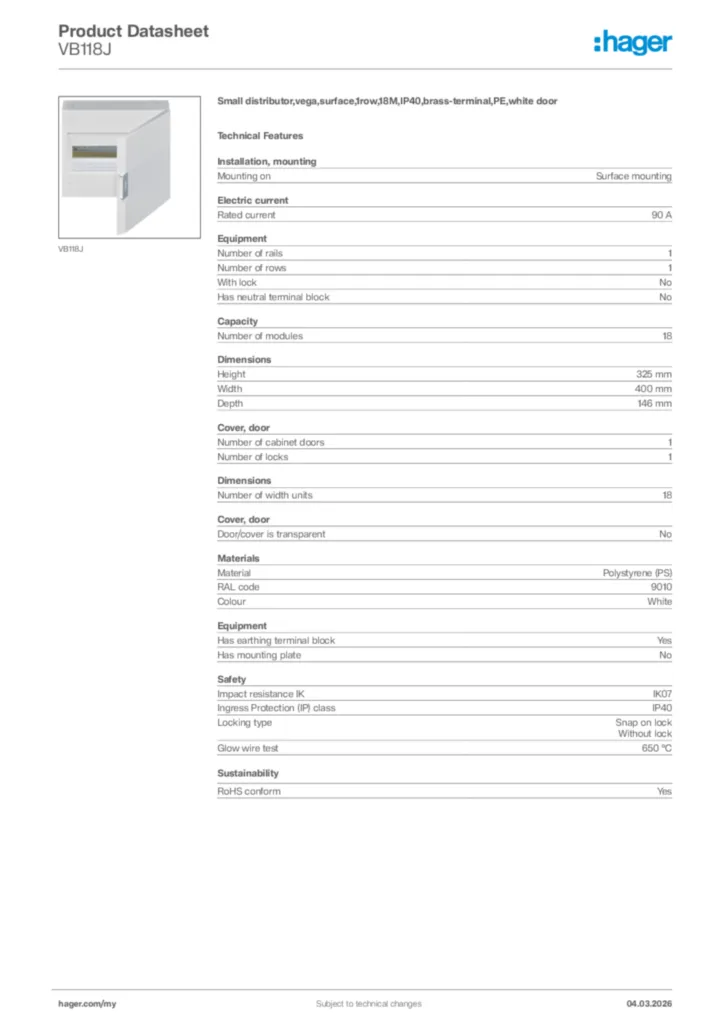

    • Product datasheet

      Image Hager Product data sheet VB118J | Hager

      Hager Product data sheet VB118J

      Small distributor,vega,surface,1row,18M,IP40,brass-terminal,PE,white door

      PDF

    • Installation manual

      Image Installation manual International 2015-07-13 | Hager

      Installation manual International 2015-07-13

      PDF
      7,72 MB

    • Product certificate

      Image Product certificate International 2024-03-19 | Hager

      Product certificate International 2024-03-19

      PDF
      3,01 MB
      Image Product certificate en-GB, fr-FR 2019-01-16 | Hager

      Product certificate en-GB, fr-FR 2019-01-16

      PDF
      925,70 kB
      Image Product certificate en-GB, fr-FR 2019-01-16 | Hager

      Product certificate en-GB, fr-FR 2019-01-16

      PDF
      931,80 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-02-22

      PDF
      224,79 kB
      Image Declaration of conformity International 2023-09-13 | Hager

      Declaration of conformity International 2023-09-13

      PDF
      321,32 kB
    More documentation
