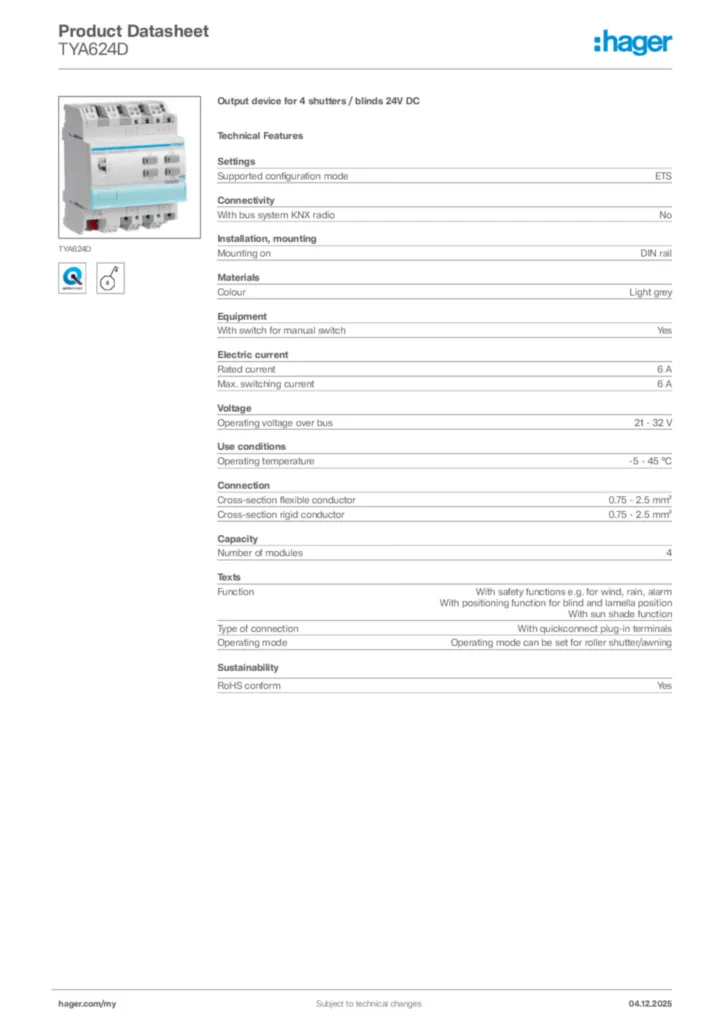

Output device for 4 shutters / blinds 24V DC TYA624D
EAN-Nr.
3250616059641
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
TGA200
Power supply 24 V DC 1A
Technical characteristics
Settings
-
Supported configuration modeETS
Connectivity
-
With bus system KNX radioNo
Installation, mounting
-
Mounting onDIN rail
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Rated current6 A
-
Max. switching current6 A
Voltage
-
Operating voltage over bus21 - 32 V
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Capacity
-
Number of modules4
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
-
Operating modeOperating mode can be set for roller shutter/awning
