Shutter module 4x 6A /24V DC, KNX TYA624B
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Must-have accessories
TGA200
Power supply 24 V DC 1A
Technical characteristics
Settings
-
Supported configuration modeETS
Connectivity
-
With bus system KNX radioNo
Installation, mounting
-
Mounting onDIN rail
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Rated current6 A
-
Max. switching current6 A
Voltage
-
Operating voltage over bus21 - 32 V
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Capacity
-
Number of modules4
Texts
-
FunctionWith positioning function for roller shutter position, With safety functions e.g. for wind, rain, alarm, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
-
Operating modeOperating mode only roller shutters
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

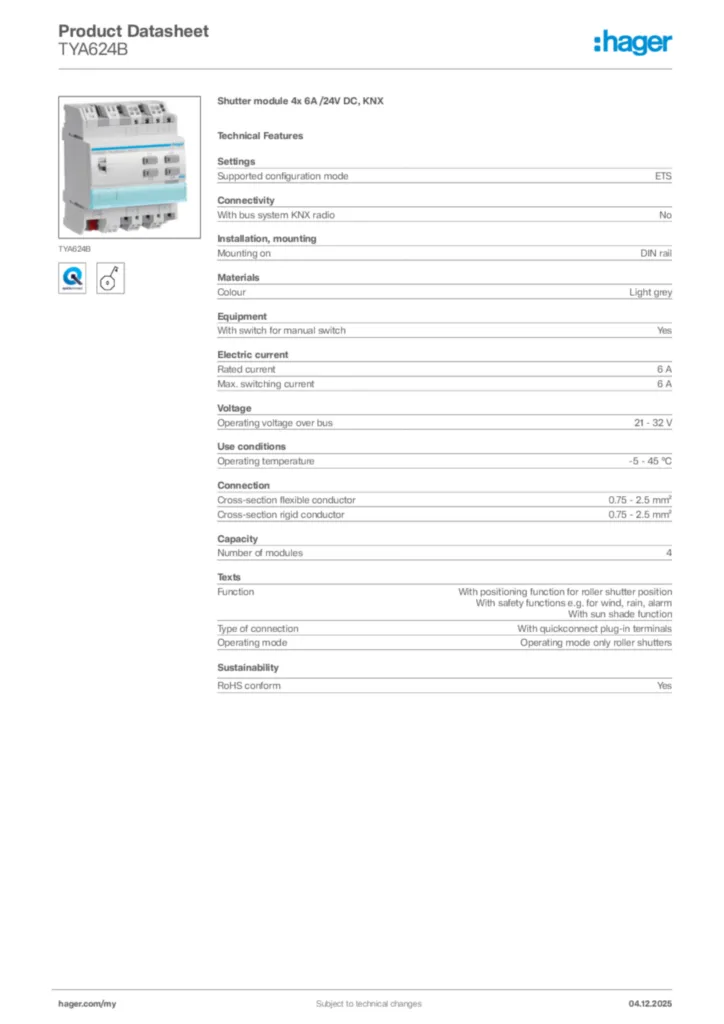

Hager Product data sheet TYA624B
Shutter module 4x 6A /24V DC, KNX
PDF -
Declaration of conformity
Declaration of Conformity
Declaration of conformity en-US, fr-FR 2024-11-20
PDF126,83 kB
