Output module 8x 4A /230V~, KNX TYA608A
EAN-Nr.
3250616059740
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS
Dimensions
-
Height90 mm
-
Depth65 mm
-
Number of width units6
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Rated current4 A
-
Bus current consumption while idle9 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Power incandescent lamp 230 V800 - 800 W
-
Output power800 W
-
230 V incandescent and halogen lamp800 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

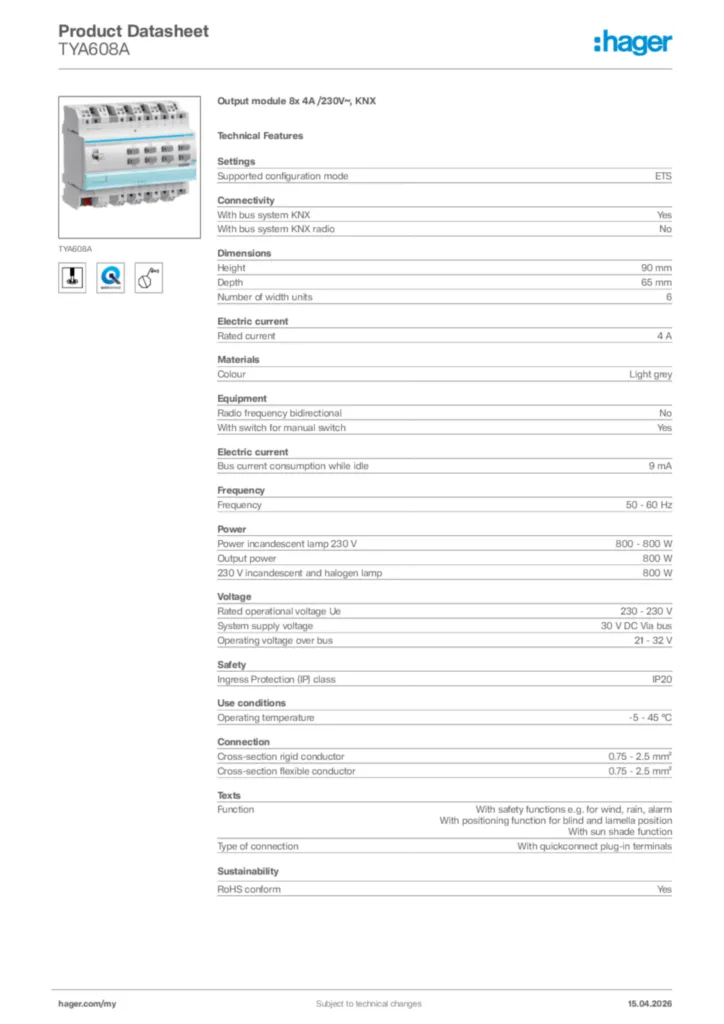

Hager Product data sheet TYA608A
Output module 8x 4A /230V~, KNX
PDF
More documentation
