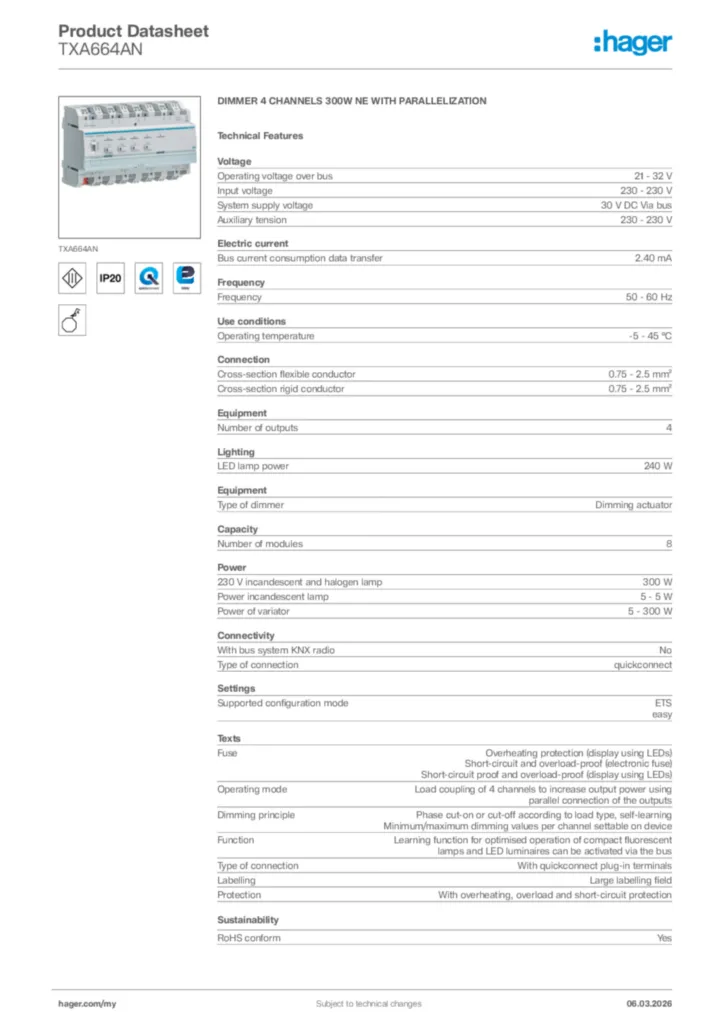

DIMMER 4 CHANNELS 300W NE WITH PARALLELIZATION TXA664AN

EAN-Nr.
3250617579872
Packaging
1 piece
Phase out product: please contact your electrical wholesaler for availability

Technical characteristics

Voltage
  • Oper­ating voltage over bus
    21 - 32 V
  • Input voltage
    230 - 230 V
  • System supply voltage
    30 V DC Via bus
  • Auxil­iary tension
    230 - 230 V
Elec­tric current
  • Bus current consump­tion data transfer
    2,40 mA
Frequency
  • Frequency
    50 - 60 Hz
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    0.75 - 2.5 mm²
  • Cross-sec­tion rigid conductor
    0.75 - 2.5 mm²
Equip­ment
  • Number of outputs
    4
  • Type of dimmer
    Dimming actu­ator
Lighting
  • LED lamp power
    240 W
Capa­city
  • Number of modules
    8
Power
  • 230 V incan­des­cent and halogen lamp
    300 W
  • Power incan­des­cent lamp
    5 - 5 W
  • Power of vari­ator
    5 - 300 W
Connectivity
  • With bus system KNX radio
    No
  • Type of connec­tion
    quick­con­nect
Settings
  • Supported config­ur­a­tion mode
    ETS, easy
Texts
  • Fuse
    Over­heating protec­tion (dis­play using LEDs), Short-­cir­cuit and over­load-­proof (elec­tronic fuse), Short-­cir­cuit proof and over­load-­proof (dis­play using LEDs)
  • Oper­ating mode
    Load coup­ling of 4 chan­nels to increase output power using parallel connec­tion of the outputs
  • Dimming prin­ciple
    Phase cut-on or cut-off according to load type, self-learning, Minim­um/max­imum dimming values per channel settable on device
  • Func­tion
    Learning func­tion for optim­ised oper­a­tion of compact fluor­es­cent lamps and LED lumin­aires can be activ­ated via the bus
  • Type of connec­tion
    With quick­con­nect plug-in terminals
  • Labelling
    Large labelling field
  • Protec­tion
    With over­heat­ing, over­load and short-­cir­cuit protec­tion

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
