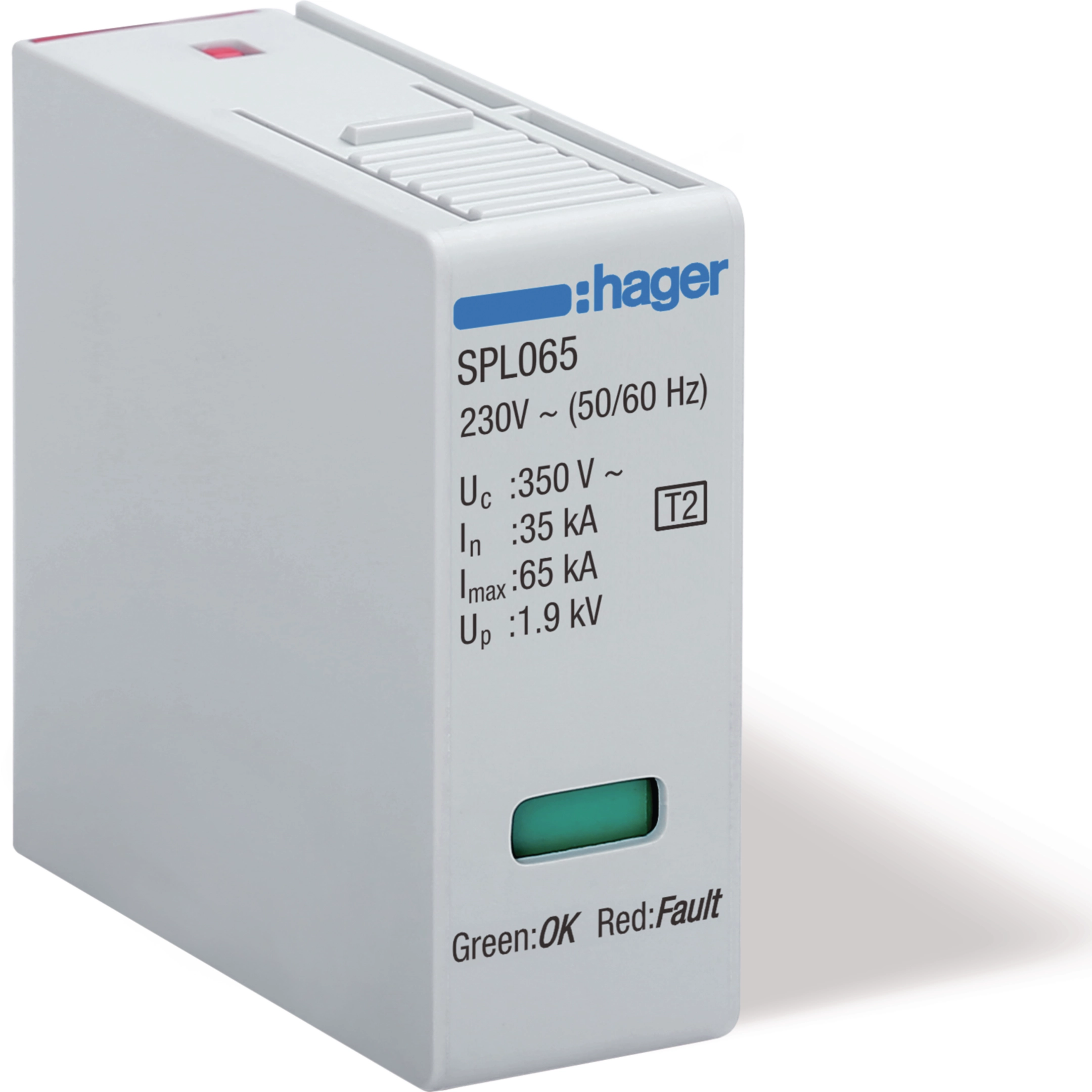

Cartridge L-N Uc 350V In 35kA Imax 65kA SPL065

Phase out product: please contact your electrical wholesaler for availability

Technical characteristics
Environmental value
Documentations

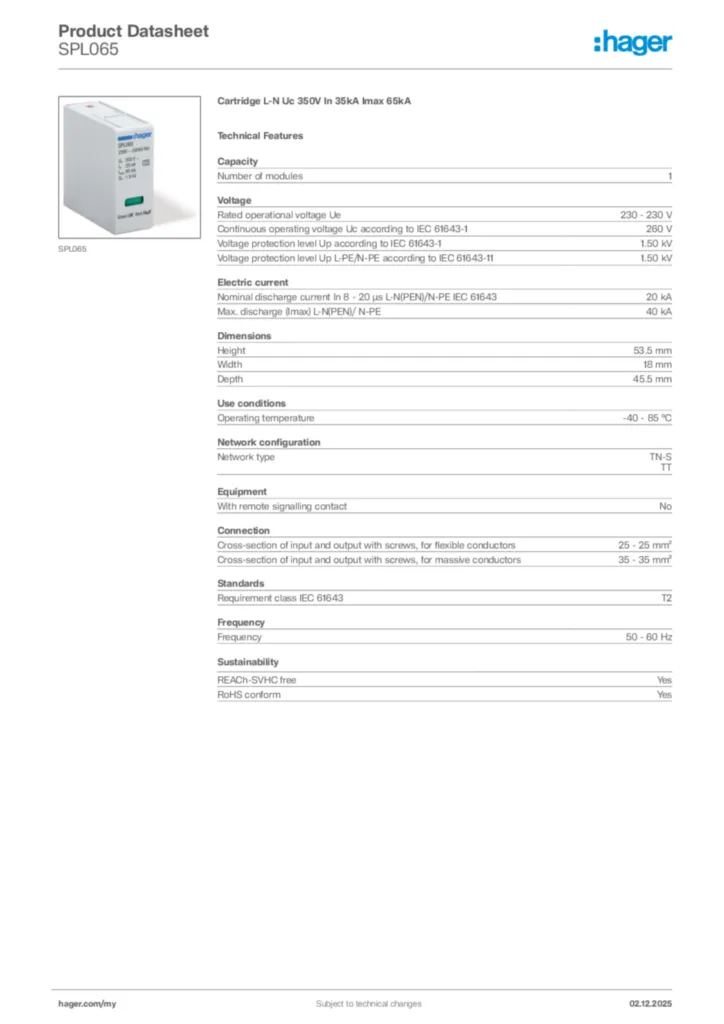

Download the sheet

Technical characteristics

Number of modules

1

Rated operational voltage Ue

230 - 230 V
Continuous operating voltage Uc according to IEC 61643-1

260 V
Voltage protection level Up according to IEC 61643-1

1,50 kV
Voltage protection level Up L-PE/N-PE according to IEC 61643-11

1,50 kV

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

20 kA
Max. discharge (Imax) L-N(PEN)/ N-PE

40 kA

Height

53,5 mm
Width

18 mm
Depth

45,5 mm

Operating temperature

-40 - 85 °C

Network type

TN-S, TT

With remote signalling contact

No

Cross-section of input and output with screws, for flexible conductors

25 - 25 mm²
Cross-section of input and output with screws, for massive conductors

35 - 35 mm²

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
