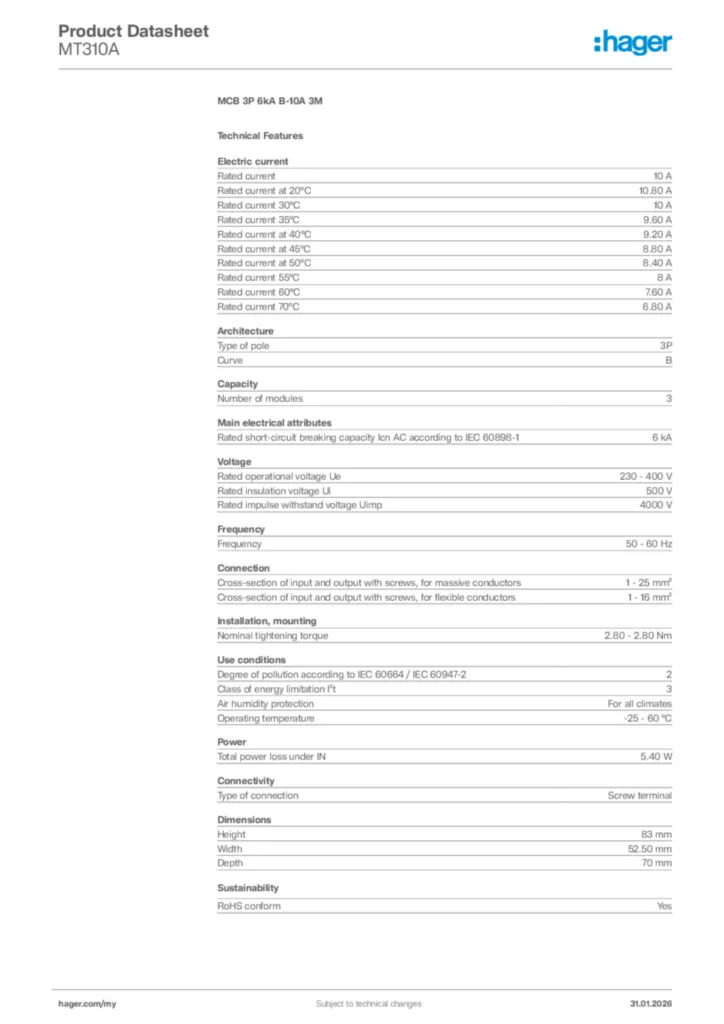

MCB 3P 6kA B-10A 3M MT310A

Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Technical characteristics

Rated current IN

10 A
Rated current at 20°C

10,80 A
Rated current 30°C

10 A
Rated current 35°C

9,60 A
Rated current at 40°C

9,20 A
Rated current at 45°C

8,80 A
Rated current at 50°C

8,40 A
Rated current 55°C

8 A
Rated current 60°C

7,60 A
Rated current 70°C

6,80 A

Curve

B

Number of modules

3

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque

2,80 - 2,80 Nm

Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²

Grid distance

35 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 60 °C

Power dissipation at IN

5,40 W

Type of connection

Screw terminal

Height

83 mm
Width

52,50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
