    EAN-Nr.
    3250613720315
    Packaging
    10 Pieces
    • Busbar

    Insulated busbar 1P 100A prong 20mm² 24M KB190C

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Insulated busbar 1P 100A prong 20mm² 24M

    KB190C

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Elec­tric current
    • Rated current
      100 A
    Archi­tec­ture
    • Number of poles
      1
    Dimen­sions
    • Length
      420 mm
    Voltage
    • Rated impulse with­stand voltage Uimp
      4000 V
    • Rated oper­a­tional voltage Ue
      415 - 415 V
    Connec­tion
    • Cross-sec­tion rigid conductor
      20 mm²
    • Connect­or/plug type
      Phase busbar with pin
    Capa­city
    • Number of modules
      24

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Insulated busbar 3P 63A fork 10mm² 12M
    PDF
    470,84 kB
    Hager REACH declaration KB190C
    PDF
    Hager RoHS report KB190C
    PDF

    Downloads

    • Image KB190C | Hager

      Product Image KB190C

    • Product datasheet

      Image Hager Product data sheet KB190C | Hager

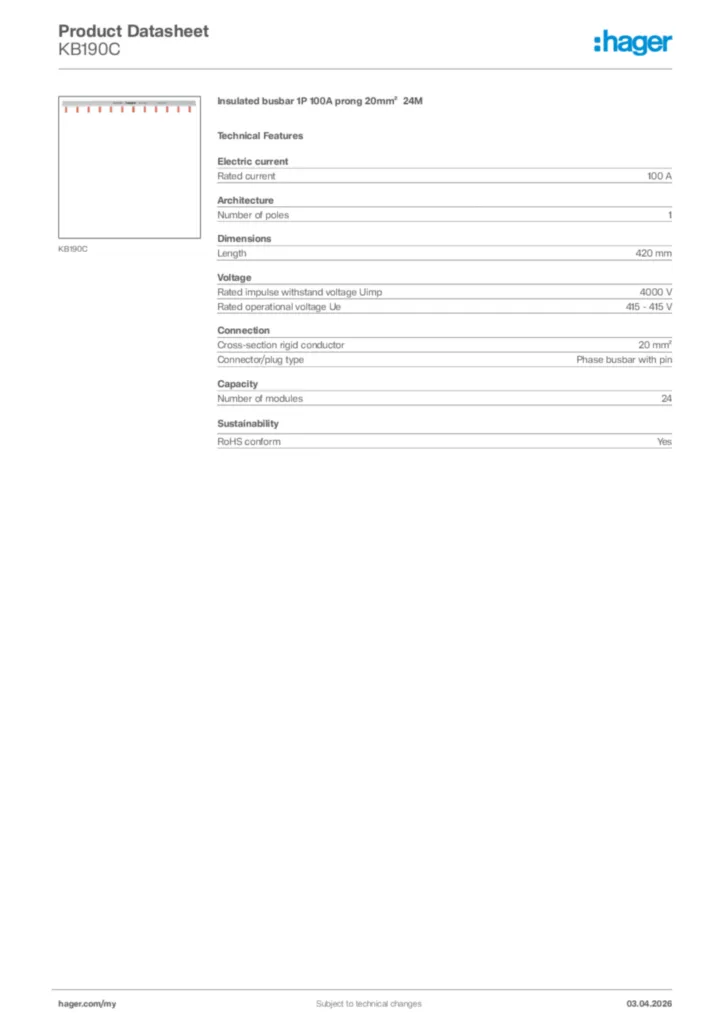

      Hager Product data sheet KB190C

      Insulated busbar 1P 100A prong 20mm² 24M

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-01-12 | Hager

      Declaration of conformity en-GB 2026-01-12

      PDF
      364,15 kB
      Image Declaration of conformity en-GB 2026-01-12 | Hager

      Declaration of conformity en-GB 2026-01-12

      PDF
      386,96 kB
