Moulded Case Circuit Breaker X250 4P 40kA 250A TM HNB251U
EAN-Nr.
3250613347727
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Phase separation functions 1 products available -
Handle for power circuit breaker 1 products available -
Shunt release 3 products available -
Connection Functions 2 products available -
Under voltage coil 3 products available -
Auxiliaries contact block 3 products available
Complete your system
Technical characteristics
Electric current
-
Rated current250 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-240 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
-
Rated current 10°C according to IEC 60947298,20 A
-
Rated current 15°C according to IEC 60947292,70 A
-
Rated current 20°C according to IEC 60947287,20 A
-
Rated current 25°C according to IEC 60947281,20 A
-
Rated current 30°C according to IEC 60947275,20 A
-
Rated current at 35°C according to IEC 60947269,20 A
-
Rated current at 40°C according to IEC 60947263 A
-
Rated current 45°C according to IEC 60947256,50 A
-
Rated current 50°C according to IEC 60947250 A
-
Rated current 55°C according to IEC 60947243,20 A
-
Rated current at 60°C according to IEC 60947236,20 A
-
Rated current 65°C according to IEC 60947229,20 A
-
Rated current 70°C according to IEC 60947222,20 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 415 V
Functions
-
Trip unitTM A/A
Power
-
Total power loss under IN48 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Compatibility
-
Suitable for DIN RailNo
Installation, mounting
-
Mounting-/Connection PositionFront
-
Nominal tightening torque12 - 12 Nm
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Catalogue

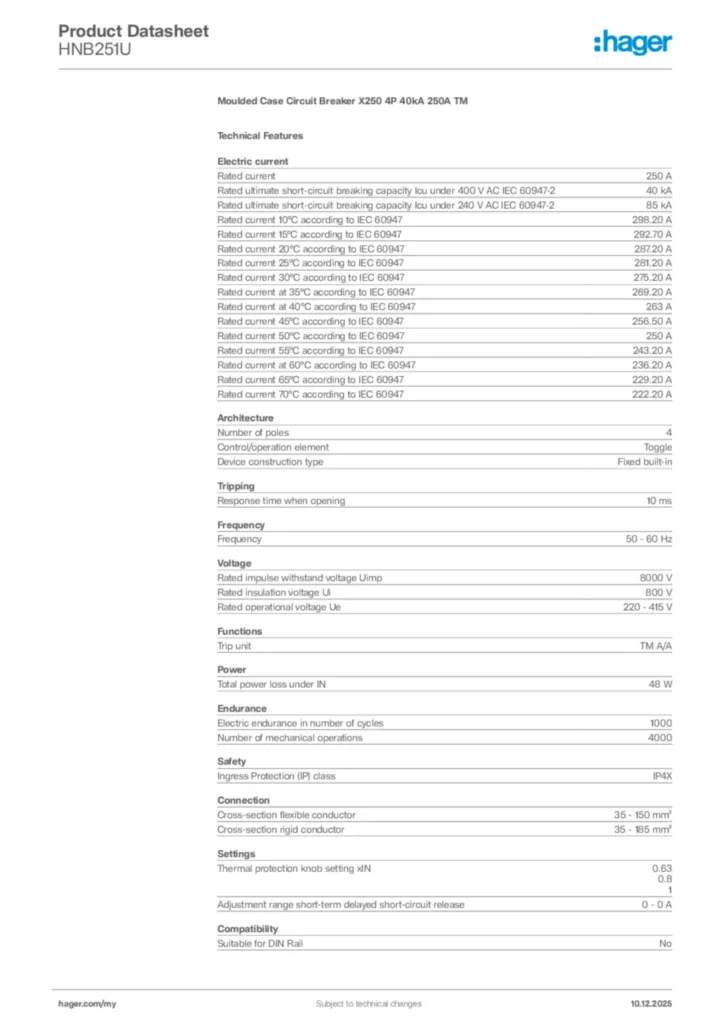

h3 MCCB Catalogue MY
Catalogue en-GB 2025-08-25
PDF10,14 MB -
Declaration of conformity

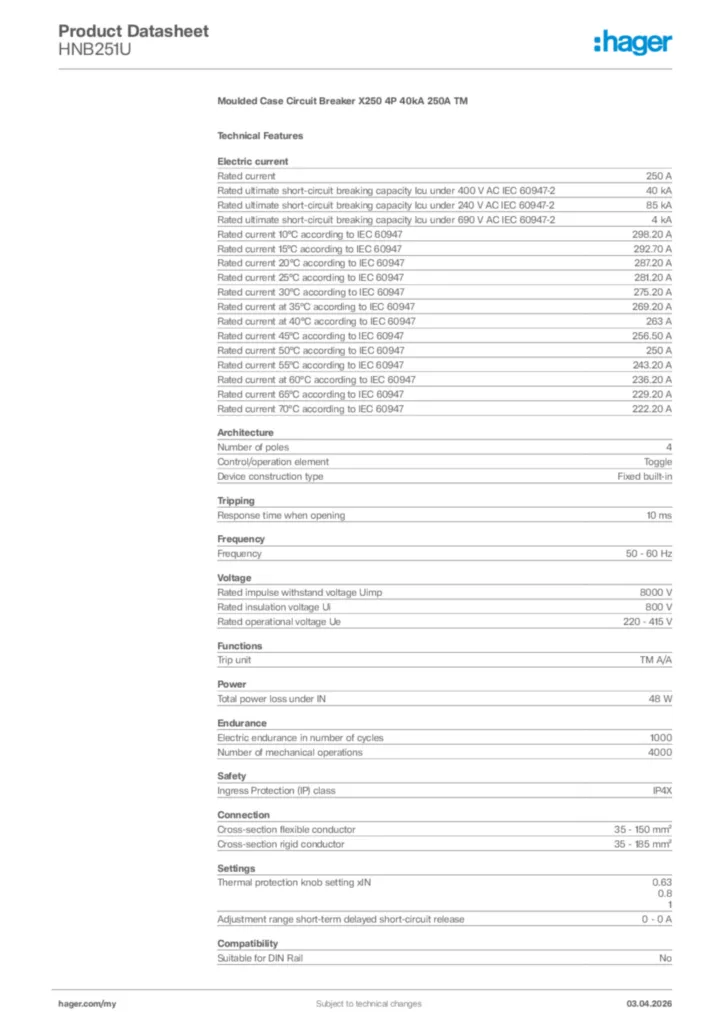

EU Declaration of Conformity
