Moulded Case Circuit Breaker h1000 3P 70kA 1000A LSI HEE970H

EAN-Nr.
3250613349783
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Stop delivery w sub Example text: This product is now obsolete. However, you can view the following products as replacements or extensions. As the functions of the replacement product are not absolutely identical, please consult your nearest Hager partner if you have any questions.

Moulded Case Circuit Breaker h1000 3P 70kA 1000A LSI

HEE970H

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations

Complete your system

Optional accessories

  • Shunt release 1 products available

Complete your system

  • Shunt release
  • HXC004H

    Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
    0.00 €  / *

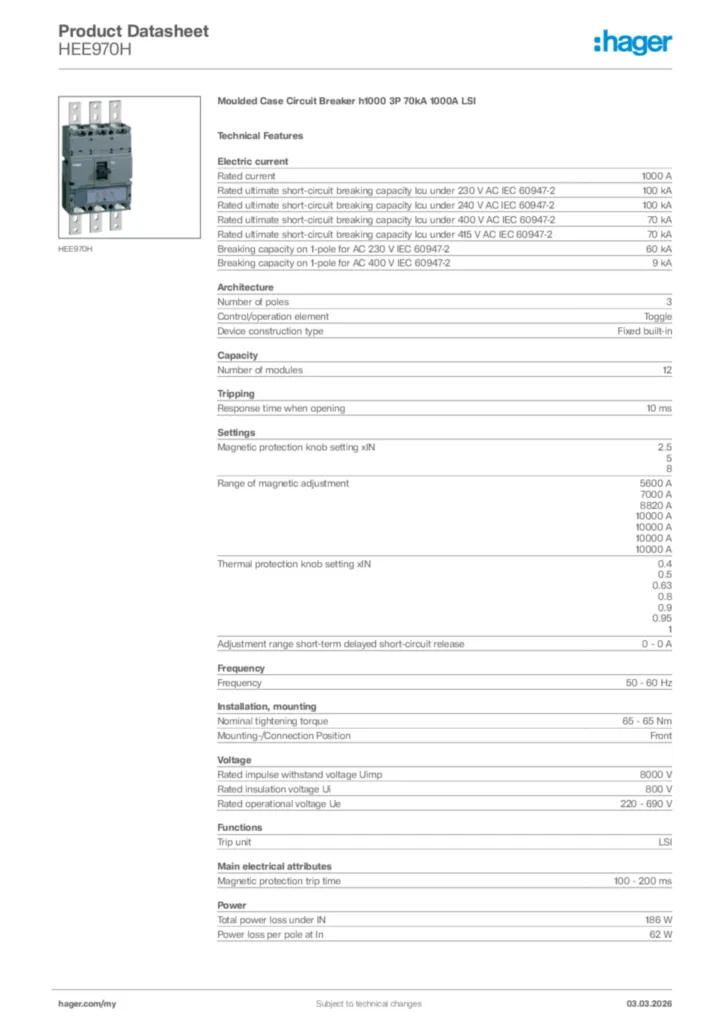

Technical characteristics

Elec­tric current
  • Rated current
    1000 A
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
    100 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
    100 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
    70 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
    70 kA
  • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
    60 kA
  • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
    9 kA
Archi­tec­ture
  • Number of poles
    3
  • Control/­op­er­a­tion element
    Toggle
  • Device construc­tion type
    Fixed built-in
Capa­city
  • Number of modules
    12
Trip­ping
  • Response time when opening
    10 ms
Settings
  • Magnetic protec­tion knob setting xIN
    2.5, 5, 8
  • Range of magnetic adjust­ment
    5600 A, 7000 A, 8820 A, 10000 A, 10000 A, 10000 A, 10000 A
  • Thermal protec­tion knob setting xIN
    0.4, 0.5, 0.63, 0.8, 0.9, 0.95, 1
  • Adjust­ment range short-term delayed short-­cir­cuit release
    0 - 0 A
Frequency
  • Frequency
    50 - 60 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    65 - 65 Nm
  • Mount­ing-/­Con­nec­tion Posi­tion
    Front
Voltage
  • Rated impulse with­stand voltage Uimp
    8000 V
  • Rated insu­la­tion voltage Ui
    800 V
  • Rated oper­a­tional voltage Ue
    220 - 690 V
Func­tions
  • Trip unit
    LSI
Main elec­trical attrib­utes
  • Magnetic protec­tion trip time
    100 - 200 ms
Power
  • Total power loss under IN
    186 W
  • Power loss per pole at In
    62 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    1000
  • Number of mech­an­ical oper­a­tions
    4000
Equip­ment
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
Safety
  • Ingress Protec­tion (IP) class
    IP4X
Use condi­tions
  • Oper­ating temper­ature
    -25 - 70 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    2x 240 mm²
  • Cross-sec­tion rigid conductor
    2x 240 mm²
  • Connect­or/plug type
    Terminal
Controls and indic­ators
  • Motor drive integ­rated
    No
Compat­ib­ility
  • Suit­able for DIN Rail
    No
Power supply
  • Posi­tion power supply
    Bidirec­tional

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration HEE970H
PDF
Hager RoHS report HEE970H
PDF

Downloads

  • Image HEE970H | Hager

    Product Image HEE970H

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-06-23

    PDF
    285,31 kB
