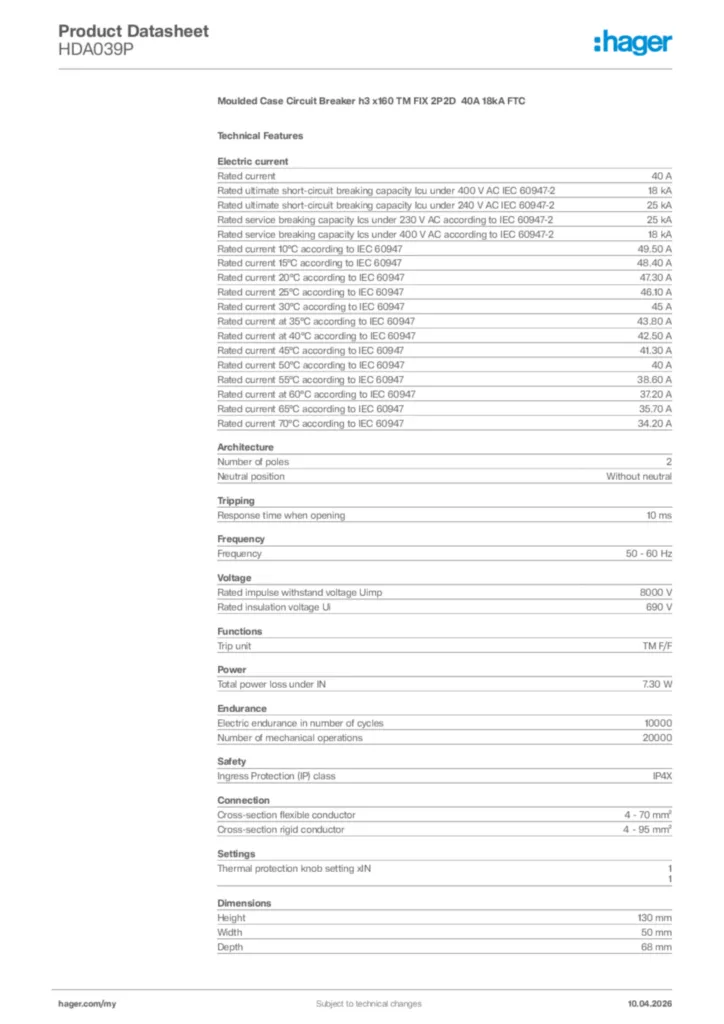

Moulded Case Circuit Breaker h3 x160 TM FIX 2P2D 40A 18kA FTC HDA039P

Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Technical characteristics

Rated current

40 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

18 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

25 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

25 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

18 kA
Rated current 10°C according to IEC 60947

49,50 A
Rated current 15°C according to IEC 60947

48,40 A
Rated current 20°C according to IEC 60947

47,30 A
Rated current 25°C according to IEC 60947

46,10 A
Rated current 30°C according to IEC 60947

45 A
Rated current at 35°C according to IEC 60947

43,80 A
Rated current at 40°C according to IEC 60947

42,50 A
Rated current 45°C according to IEC 60947

41,30 A
Rated current 50°C according to IEC 60947

40 A
Rated current 55°C according to IEC 60947

38,60 A
Rated current at 60°C according to IEC 60947

37,20 A
Rated current 65°C according to IEC 60947

35,70 A
Rated current 70°C according to IEC 60947

34,20 A

Number of poles

2
Neutral position

Without neutral

Response time when opening

10 ms

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

690 V

Trip unit

TM F/F

Total power loss under IN

7,30 W

Electric endurance in number of cycles

10000
Number of mechanical operations

20000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

4 - 70 mm²
Cross-section rigid conductor

4 - 95 mm²

Thermal protection knob setting xIN

1, 1

Height

130 mm
Width

50 mm
Depth

68 mm

Suitable for DIN Rail

No

Magnetic protection trip time

0 - 0 ms

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
