Mini-enclosure, gamma, 6 module, protect. class IP30 GD106B

EAN-Nr.
3250612843121
Packaging
4 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Mini-enclosure, gamma, 6 module, protect. class IP30

GD106B

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Cover strip 1 products available

Complete your system

  • Cover strip
  • S35S

    Cover strips, RAL 9010, breakable, 219 mm
    0.00 €  / *

Technical characteristics

Voltage
  • Nominal voltage
    230 - 230 V
Install­a­tion, mounting
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    50 A
Equip­ment
  • Number of rails
    1
  • Number of rows
    1
  • With lock
    No
  • Has neutral terminal block
    No
  • Has earthing terminal block
    No
  • Has mounting plate
    No
Capa­city
  • Number of modules
    6
Dimen­sions
  • Height
    180 mm
  • Width
    146 mm
  • Depth
    82 mm
  • Number of width units
    6
Cover, door
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Plastic
  • RAL code
    9010
  • Colour
    Pure white
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP30
  • Locking type
    Without lock
  • Glow wire test
    750 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
PDF
25,39 MB
REACH declaration GD106B
PDF
RoHS report GD106B
PDF

Downloads

  • Image GD106B | Hager

    Product Image GD106B

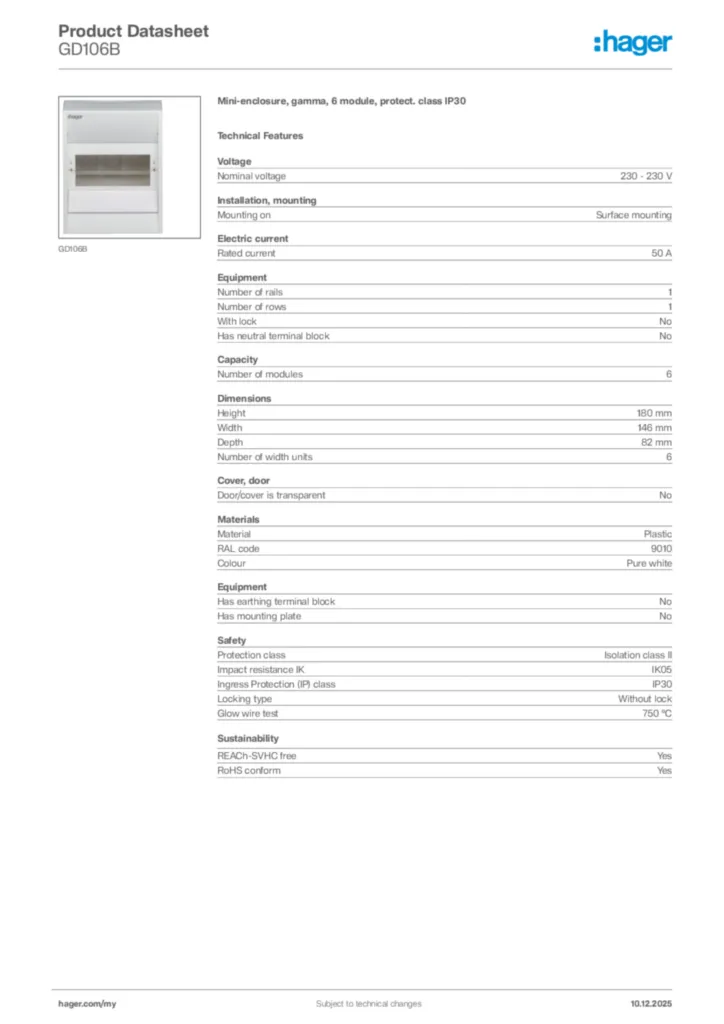

  • Product datasheet

    Image Hager Product data sheet GD106B | Hager

    Hager Product data sheet GD106B

    Mini-enclosure, gamma, 6 module, protect. class IP30

    PDF

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-10-14

    PDF
    824,09 kB
    Image Declaration of conformity en-GB 2024-04-15 | Hager

    Declaration of conformity en-GB 2024-04-15

    PDF
    174,16 kB
