Multifunction time relay 12-240V AC/DC EZM100
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-25 - 55 °C
-
Storage/transport temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor0.5 - 2.5 mm²
-
Cross-section rigid conductor0.5 - 2.5 mm²
-
Number of contacts1
-
Type of contacts1x changeover
Capacity
-
Number of modules1
Dimensions
-
Height87 mm
-
Width17,50 mm
-
Depth65 mm
Electric current
-
Acceptable current rating AC18 A
Equipment
-
Number of NC contacts1
-
Number of NO contacts1
-
Switch off delayYes
-
Switch on delayYes
Settings
-
Time delay50 ms - 100 h
Voltage
-
Command voltage for 50 Hz12 - 240 V
-
Command voltage for 60 Hz12 - 240 V
-
Command voltage Us for DC12 - 240 V
-
Type voltage supplyAC/DC
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

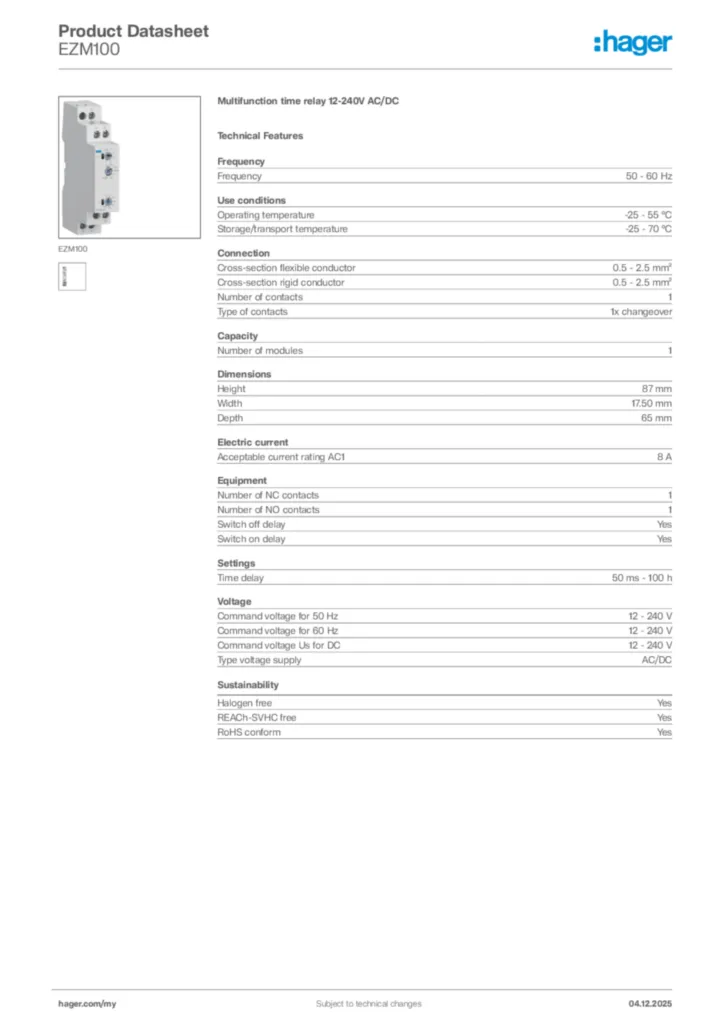

Hager Product data sheet EZM100
