Compact twilight switch enhanced 16A EE702

EAN-Nr.
3250612257027
Packaging
1 piece

Technical characteristics

Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
Frequency
  • Frequency
    50 - 60 Hz
Power
  • 230 V incan­des­cent and halogen lamp
    2300 W
Settings
  • Switch off delay time
    40 s
  • Switch on delay time
    10 s
Use condi­tions
  • Stor­age/trans­port temper­ature
    -30 - +60 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    1 - 4 mm²
  • Cross-sec­tion rigid conductor
    1 - 4 mm²
Texts
  • Install­a­tion mode
    With pipe clamp for mast fixing, Install­a­tion possible on flush-­mounted box, For wall and mast assembly
  • Type of connec­tion
    With screw terminals
Elec­tric current
  • Switching current
    10 A
Dimen­sions
  • Height
    95 mm
  • Width
    80 mm
  • Depth
    42,50 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

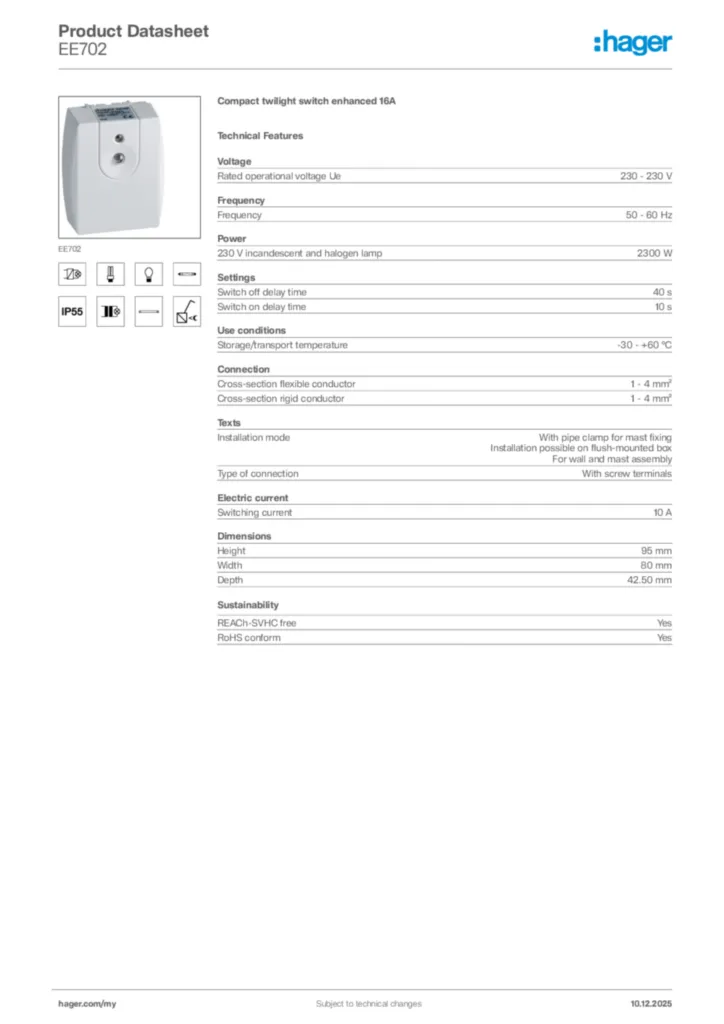

Compact twilight switch enhanced 16A
PDF
388,00 kB
Hager REACH declaration EE702
PDF
Hager RoHS report EE702
PDF
