    EAN-Nr.
    3250612230402
    Packaging
    1 piece

    1 Phase kWhmeter direct 3x80A 4M S0 ECP180T

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    1 Phase kWhmeter direct 3x80A 4M S0

    ECP180T

    • Technical characteristics
    • Documentations
    Download the sheet

    Technical characteristics

    Archi­tec­ture
    • Type of pole
      3x 1P+N
    Elec­tric current
    • Rated current
      80 A
    • Maximum meas­uring circuit current
      80 A
    Capa­city
    • Number of modules
      4
    Connectivity
    • Type of connec­tion
      Direct connec­tion
    Dimen­sions
    • Height
      92 mm
    • Width
      72 mm
    • Depth
      60 mm
    Equip­ment
    • Type of pulse gener­ator
      Elec­trical
    Compat­ib­ility
    • Suit­able for
      Purchase/supply
    Connec­tion
    • Cross-sec­tion of metering input
      33 - 33 mm²
    • Cross-sec­tion of metering output
      33 - 33 mm²
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2 - 2 Nm
    • Mounting on
      DIN rail
    Mech­an­ical features
    • Nominal tight­ening torque digital terminal
      0,50 - 0,50 Nm
    Meas­ure­ment
    • Meas­uring system
      Direct meas­ure­ment
    • Type of meas­uring instru­ment
      Elec­tronic
    • Current meas­ure­ment range
      0,25 - 80,0 A
    • Meas­ure­ment range voltage Ph-N
      92 - 276 V
    • Frequency meas­uring range
      45 - 65 Hz
    Power supply
    • Number of phases for power supply
      1
    Func­tions
    • Accuracy class
      B
    • Tariff type
      T1...T2 (230 V AC)/-
    • Is calib­rated
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 55 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    Power
    • Power consump­tion VA
      2 VA
    • Total power loss under IN
      1 W
    Frequency
    • Frequency
      50 - 50 Hz

    Downloads

    • Image ECP180T | Hager

      Product Image ECP180T

    • Product datasheet

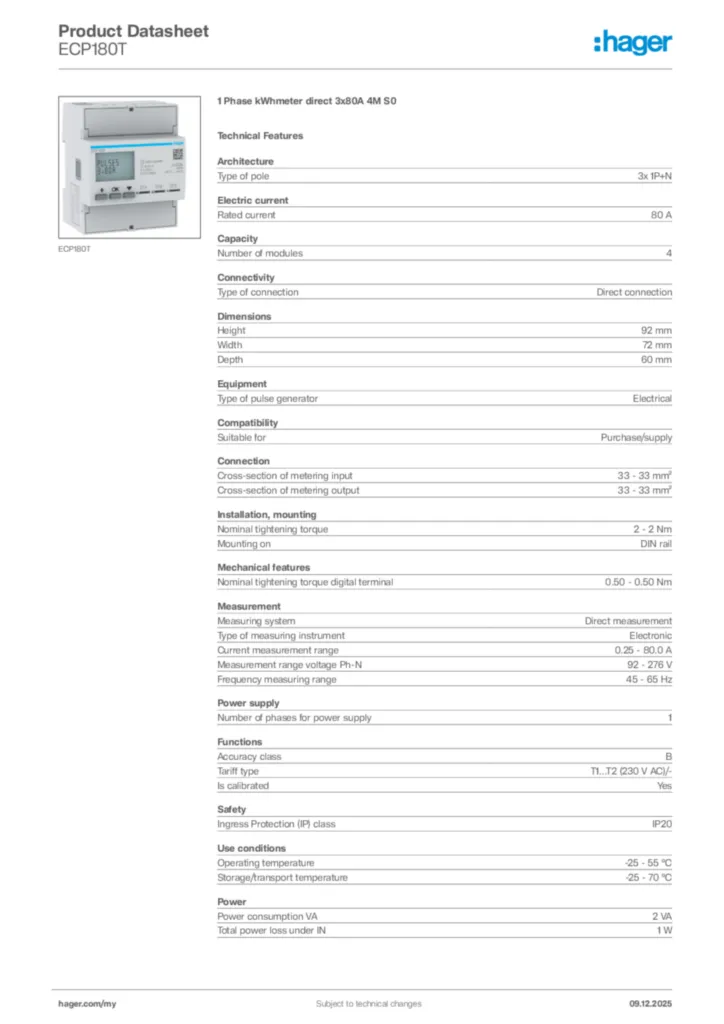

      Image Hager Product data sheet ECP180T | Hager

      Hager Product data sheet ECP180T

      1 Phase kWhmeter direct 3x80A 4M S0

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2020-01-01

      PDF
      110,84 kB
