Energy meters

1 Phase kWhmeter direct 40A 1M S0 MID ECP140D

Accessories
Technical characteristics
Documentations
More products

Download the sheet

Complete your system

Referenced by 1 products available

Technical characteristics

Type of pole

1P+N

Rated current

40 A
Maximum measuring circuit current

40 A

Number of modules

1

Type of connection

Direct connection

Height

92 mm
Width

18 mm
Depth

60 mm

Type of pulse generator

Electrical

Suitable for

Purchase/supply

Cross-section of metering input

16 - 16 mm²
Cross-section of metering output

16 - 16 mm²

Nominal tightening torque

1 - 1 Nm
Mounting on

DIN rail

Nominal tightening torque digital terminal

0,50 - 0,50 Nm

Measuring system

Direct measurement
Type of measuring instrument

Electronic
Current measurement range

0,25 - 40,0 A
Measurement range voltage Ph-N

184 - 276 V
Frequency measuring range

45 - 65 Hz

Number of phases for power supply

1

Accuracy class

B
Tariff type

One-tariff
Is calibrated

Yes

Ingress Protection (IP) class

IP20

Operating temperature

-25 - 55 °C
Storage/transport temperature

-25 - 70 °C

Power consumption VA

2 VA
Total power loss under IN

1 W

Frequency

50 - 50 Hz

Downloads

Product Image ECP140D
Product datasheet

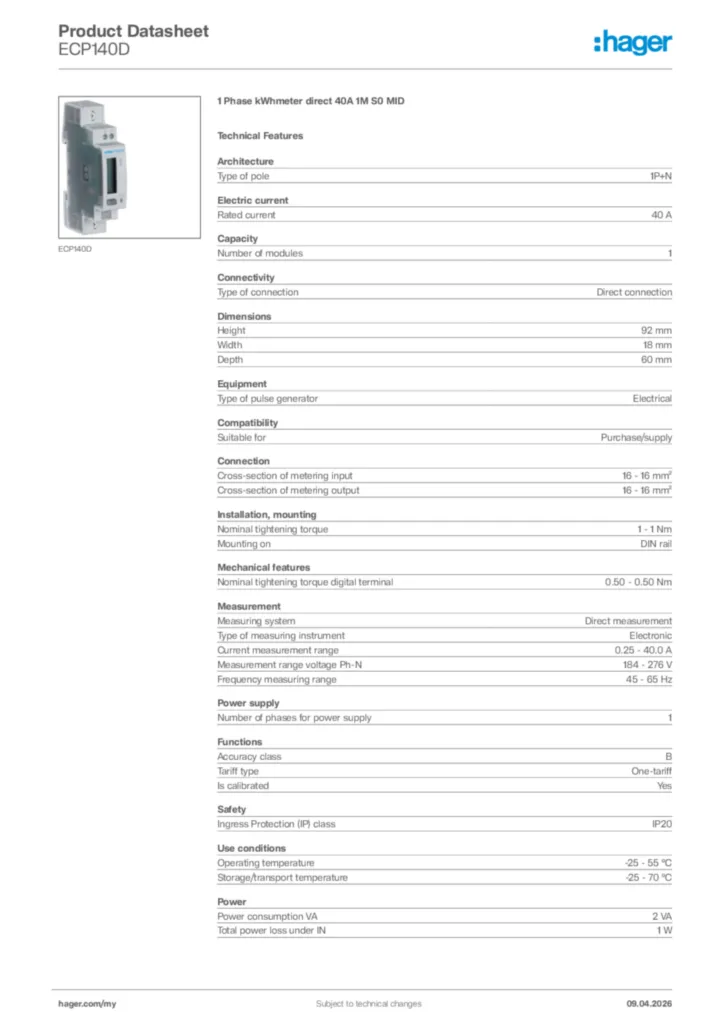

Hager Product data sheet ECP140D

1 Phase kWhmeter direct 40A 1M S0 MID

PDF
Manual

Installer Leaflet ECP140D

Manual en-GB, de-DE 2024-01-19

PDF

1,83 MB
Declaration of conformity

EU Declaration of Conformity

Declaration of conformity en-GB 2024-04-15

PDF

451,44 kB
