RCCB auto reclosing 1P+N 40A 30mA A 3M CDA240SC

Name: CDA240SC
Brand: Hager
SKU: CDA240SC

EAN-Nr.

3250611653080

Packaging

1 piece

Technical characteristics
Environmental value
Documentations
More products

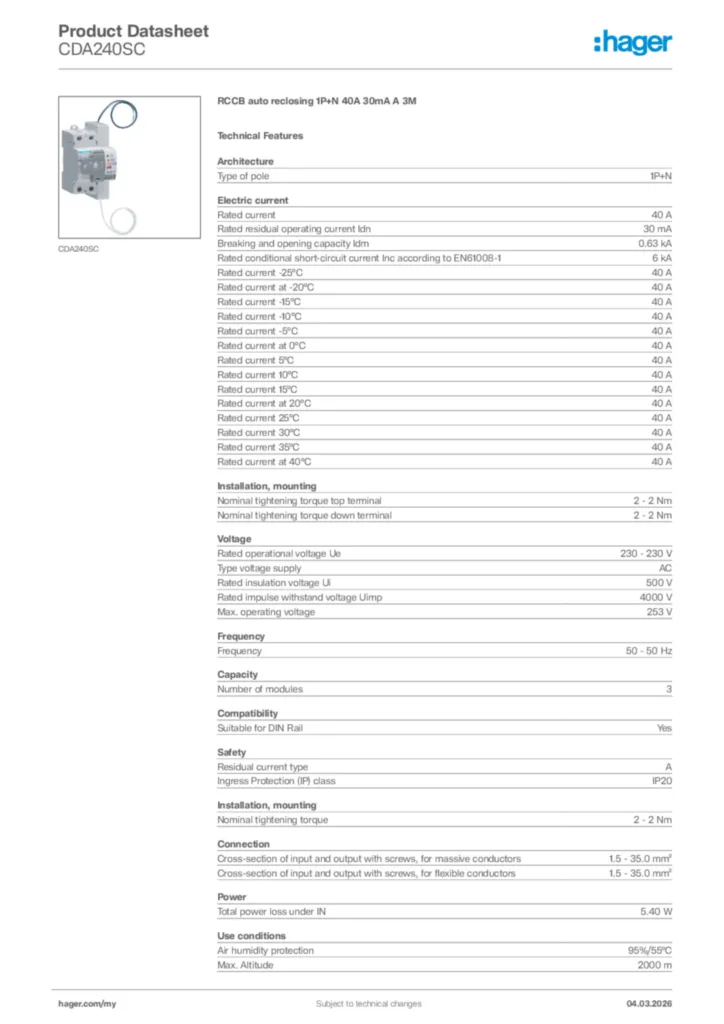

Download the sheet

Technical characteristics

Type of pole

1P+N

Rated current

40 A
Rated residual operating current Idn

30 mA
Breaking and opening capacity Idm

0,63 kA
Rated conditional short-circuit current Inc according to EN61008-1

6 kA
Rated current -25°C

40 A
Rated current at -20°C

40 A
Rated current -15°C

40 A
Rated current -10°C

40 A
Rated current -5°C

40 A
Rated current at 0°C

40 A
Rated current 5°C

40 A
Rated current 10°C

40 A
Rated current 15°C

40 A
Rated current at 20°C

40 A
Rated current 25°C

40 A
Rated current 30°C

40 A
Rated current 35°C

40 A
Rated current at 40°C

40 A

Nominal tightening torque top terminal

2 - 2 Nm
Nominal tightening torque down terminal

2 - 2 Nm
Nominal tightening torque

2 - 2 Nm

Rated operational voltage Ue

230 - 230 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V

Frequency

50 - 50 Hz

Number of modules

3

Suitable for DIN Rail

Yes

Residual current type

A
Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for massive conductors

1,5 - 35,0 mm²
Cross-section of input and output with screws, for flexible conductors

1,5 - 35,0 mm²

Total power loss under IN

5,40 W

Air humidity protection

95%/55°C
Max. Altitude

2000 m

Electric endurance in number of cycles

1000
Number of mechanical operations

4000

Type of connection

Screw terminal

Height

106 mm
Width

54 mm
Depth

75 mm
