Earth leakage add-on block 4P 63A 300mA AC S Class BP464N
EAN-Nr.
3250611464518
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 44 products available
Referenced by
-
NC404AMCB 4P 10kA C-4A 4M
-
NRN410MCB 4P 25kA C-10A 4M
-
NDN401AMCB 4P 10kA/15kA D-1A 4M
-
NB406A
MCB 4P 10kA B-6A 4M
-
NB416A
MCB 4P 10kA B-16A 4M
-
NB420A
MCB 4P 10kA B-20A 4M
-
NB432AMCB 4P 10kA B-32A 4M
-
NB440A
MCB 4P 10kA B-40A 4M
-

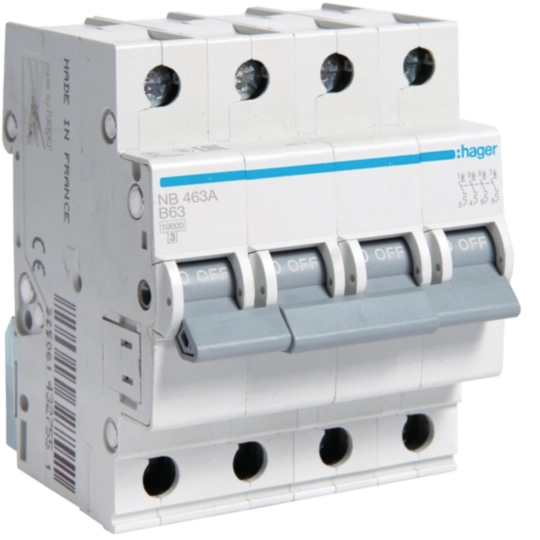

NB463AMCB 4P 10kA B-63A 4M
-
NC402A
MCB 4P 10kA C-2A 4M
-
NB410A
MCB 4P 10kA B-10A 4M
-
NC406A
MCB 4P 10kA C-6A 4M
-
NC410A
MCB 4P 10kA C-10A 4M
-
NC416A
MCB 4P 10kA C-16A 4M
-
NC420A
MCB 4P 10kA C-20A 4M
-
NC425AMCB 4P 10kA C-25A 4M
-
NC432AMCB 4P 10kA C-32A 4M
-
NC440AMCB 4P 10kA C-40A 4M
-
NC450AMCB 4P 10kA C-50A 4M
-
NC463AMCB 4P 10kA C-63A 4M
Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current63 A
Architecture
-
Number of poles4
-
Neutral positionRight
Capacity
-
Number of modules3
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
