Earth leakage add-on block 2P 63A 300mA AC Class BF264N
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 10 products available
Referenced by
Technical characteristics
Architecture
-
Neutral positionRight
-
Number of poles2
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current63 A
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Installation, mounting
-
Nominal tightening torque2,90 - 2,90 Nm
-
Nominal tightening torque down terminal2,90 - 2,90 Nm
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

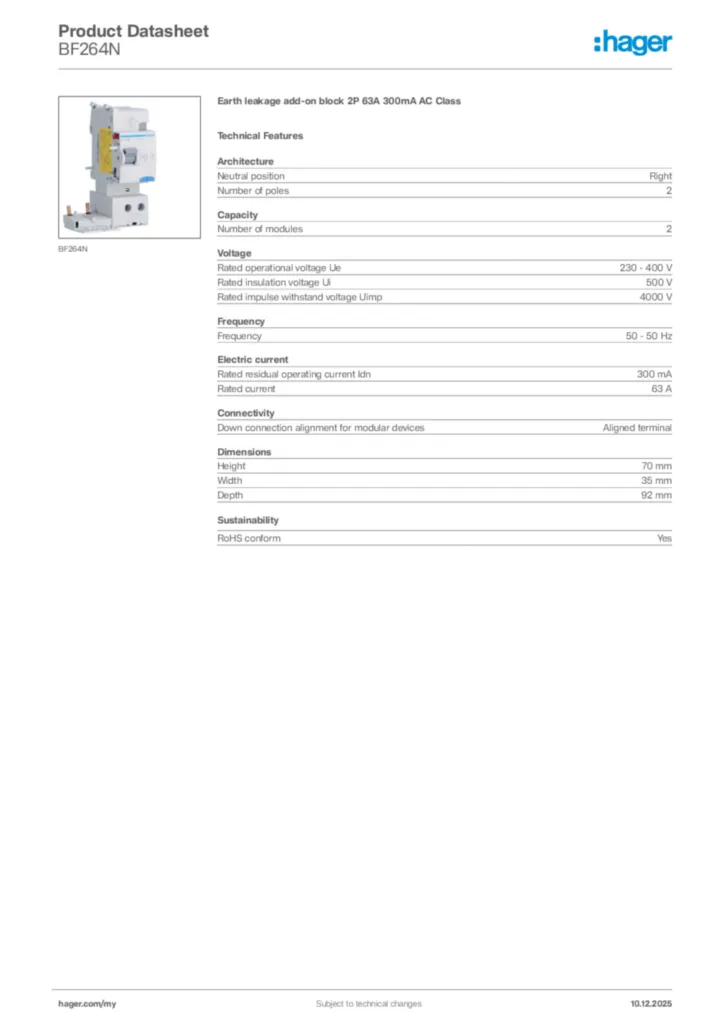

Product datasheet
Hager Product data sheet BF264N
Earth leakage add-on block 2P 63A 300mA AC Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
