    • BF226N
    EAN-Nr.
    3250611362517
    Packaging
    1 piece
    • Add-on blocks for MCB and multi­polar

    Earth leakage add-on block 2P 25A 300mA AC Class BF226N

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on block 2P 25A 300mA AC Class

    BF226N

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 28 products available

    Referenced by

    • NB206A

      MCB 2P 10kA B-6A 2M
      0.00 €  / *
    • NC225A

      MCB 2P 10kA C-25A 2M
      0.00 €  / *
    • NC220A

      MCB 2P 10kA C-20A 2M
      0.00 €  / *
    • NC216A

      MCB 2P 10kA C-16A 2M
      0.00 €  / *
    • NC210A

      MCB 2P 10kA C-10A 2M
      0.00 €  / *
    • NC206A

      MCB 2P 10kA C-6A 2M
      0.00 €  / *
    • NC204A

      MCB 2P 10kA C-4A 2M
      0.00 €  / *
    • NC203A

      MCB 2P 10kA C-3A 2M
      0.00 €  / *
    • NC202A

      MCB 2P 10kA C-2A 2M
      0.00 €  / *
    • NB225A

      MCB 2P 10kA B-25A 2M
      0.00 €  / *
    • NB220A

      MCB 2P 10kA B-20A 2M
      0.00 €  / *
    • NB216A

      MCB 2P 10kA B-16A 2M
      0.00 €  / *
    • NB210A

      MCB 2P 10kA B-10A 2M
      0.00 €  / *
    • NRN220

      MCB 2P 25kA C-20A 2M
      0.00 €  / *
    • NDN204A

      MCB 2P 10kA/15kA D-4A 2M
      0.00 €  / *
    • NDN202A

      MCB 2P 10kA/15kA D-2A 2M
      0.00 €  / *
    • NDN201A

      MCB 2P 10kA/15kA D-1A 2M
      0.00 €  / *
    • NDN200A

      MCB 2P 10kA/15kA D-0.5A 2M
      0.00 €  / *
    • NRN225

      MCB 2P 25kA C-25A 2M
      0.00 €  / *
    • NDN220A

      MCB 2P 10kA/15kA D-20A 2M
      0.00 €  / *

    Technical characteristics

    Archi­tec­ture
    • Neutral posi­tion
      Right
    • Number of poles
      2
    Capa­city
    • Number of modules
      2
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Frequency
    • Frequency
      50 - 50 Hz
    Elec­tric current
    • Rated residual oper­ating current Idn
      300 mA
    • Rated current
      25 A
    Connectivity
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2,20 - 2,20 Nm
    • Nominal tight­ening torque down terminal
      2,20 - 2,20 Nm
    Dimen­sions
    • Height
      70 mm
    • Width
      35 mm
    • Depth
      92 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration BF226N
    PDF
    Hager RoHS report BF226N
    PDF

    Downloads

    • Image BF226N | Hager

      Product Image BF226N

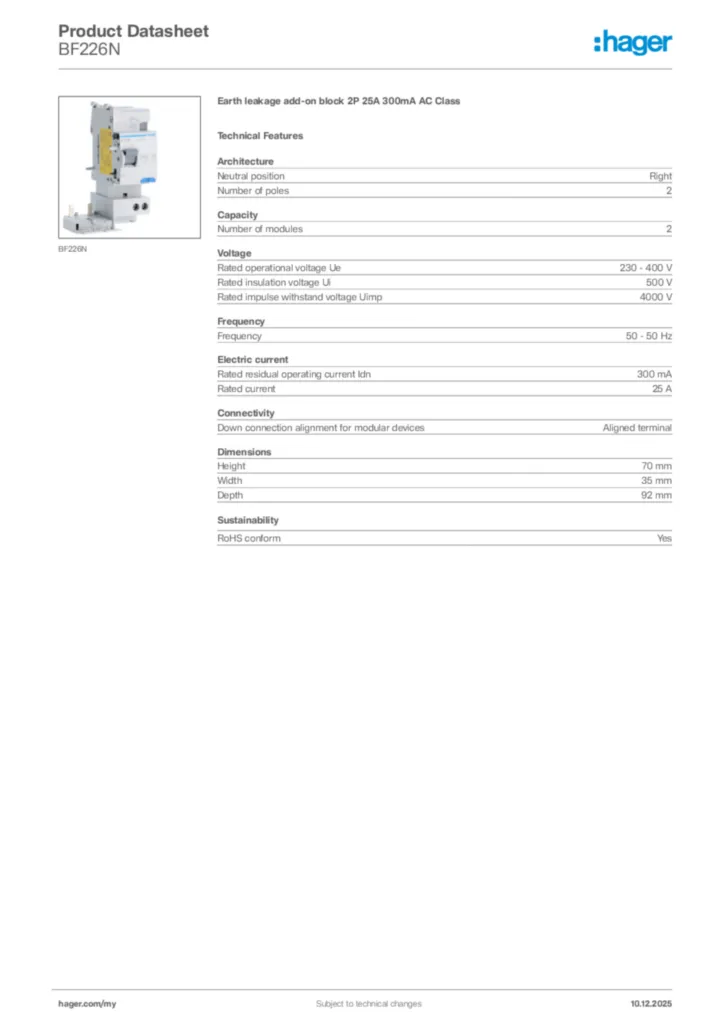

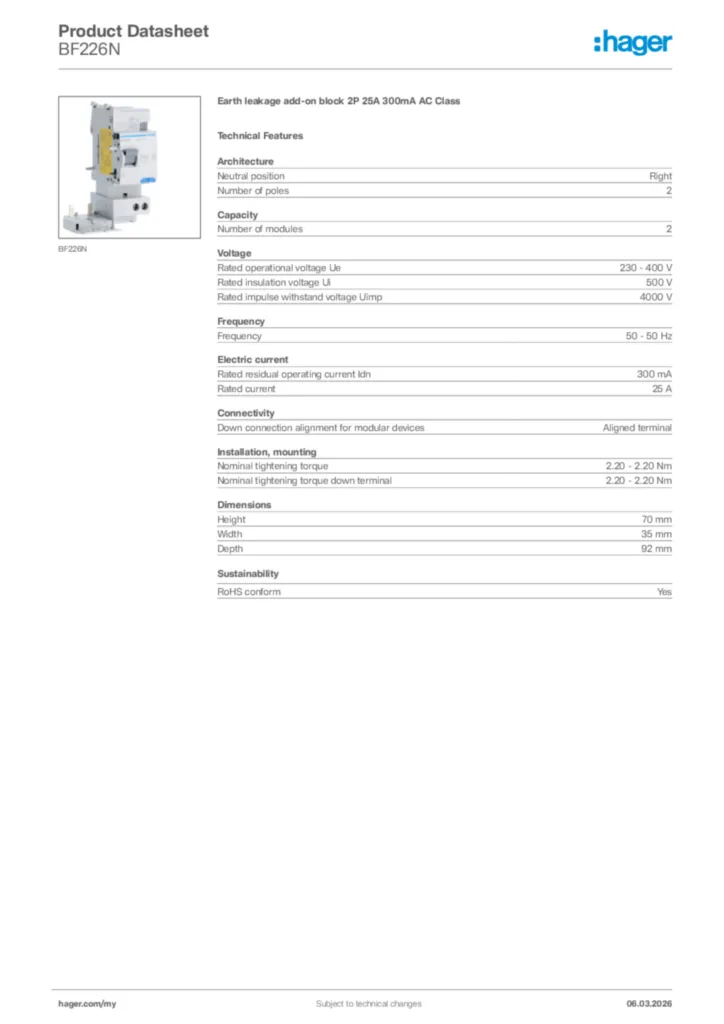

    • Product datasheet

      Image Hager Product data sheet BF226N | Hager

      Hager Product data sheet BF226N

      Earth leakage add-on block 2P 25A 300mA AC Class

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29 | Hager

      Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29

      PDF
      1,61 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-11-10

      PDF
      920,46 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-12-07

      PDF
      1,14 MB
      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-11-12

      PDF
      452,70 kB
