    • Home
    • Catalogue
    • Modular devices
    • Protec­tion and accessories
    • Add-on blocks for MCB and multi­polar
    • BE363N
    EAN-Nr.
    3250611353010
    Packaging
    1 piece
    • Add-on blocks for MCB and multi­polar

    Earth leakage add-on block 3P 63A 100mA A Class BE363N

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on block 3P 63A 100mA A Class

    BE363N

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 16 products available

    Referenced by

    • NRN363

      MCB 3P 15kA C-63A 3M
      0.00 €  / *
    • NRN332

      MCB 3P 20kA C-32A 3M
      0.00 €  / *
    • NDN340A

      MCB 3P 10kA/15kA D-40A 3M
      0.00 €  / *
    • NDN363A

      MCB 3P 10kA/15kA D-63A 3M
      0.00 €  / *
    • NDN350A

      MCB 3P 10kA/15kA D-50A 3M
      0.00 €  / *
    • NRN340

      MCB 3P 20kA C-40A 3M
      0.00 €  / *
    • NRN350

      MCB 3P 15kA C-50A 3M
      0.00 €  / *
    • NB332A

      MCB 3P 10kA B-32A 3M
      0.00 €  / *

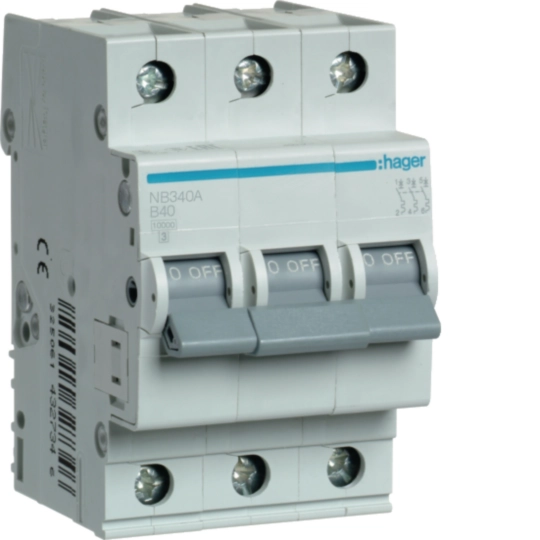

    • NB340A

      MCB 3P 10kA B-40A 3M
      0.00 €  / *
    • NB350A

      MCB 3P 10kA B-50A 3M
      0.00 €  / *
    • NB363A

      MCB 3P 10kA B-63A 3M
      0.00 €  / *

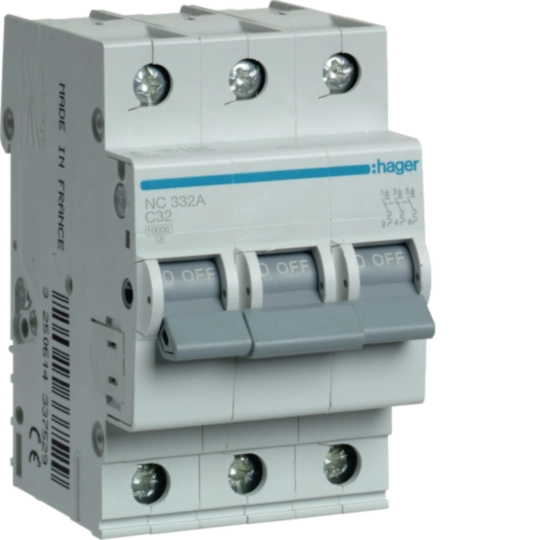

    • NC332A

      MCB 3P 10kA C-32A 3M
      0.00 €  / *

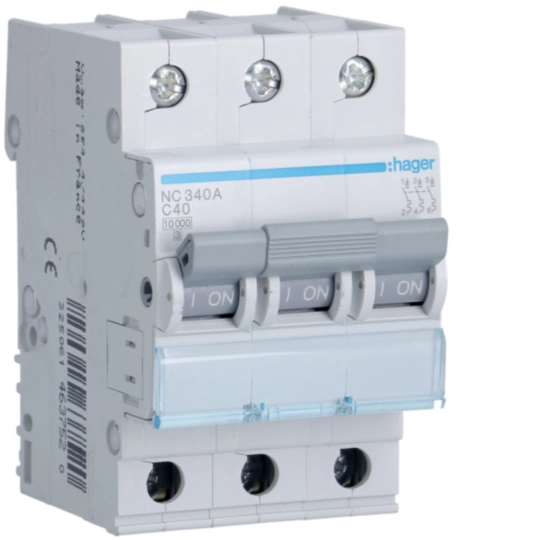

    • NC340A

      MCB 3P 10kA C-40A 3M
      0.00 €  / *

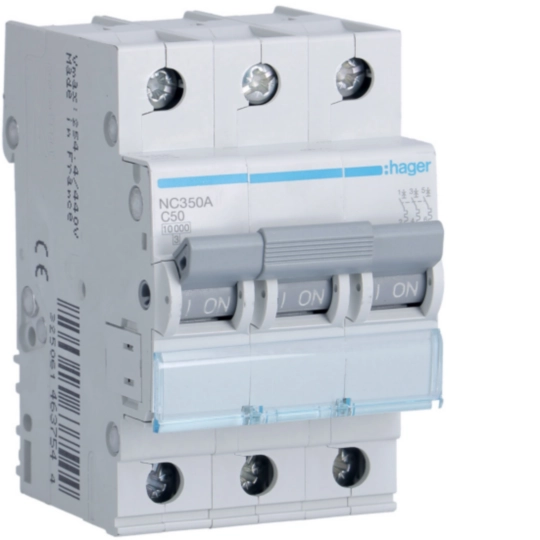

    • NC350A

      MCB 3P 10kA C-50A 3M
      0.00 €  / *
    • NC363A

      MCB 3P 10kA C-63A 3M
      0.00 €  / *
    • NDN332A

      MCB 3P 10kA/15kA D-32A 3M
      0.00 €  / *

    Technical characteristics

    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Frequency
    • Frequency
      50 - 50 Hz
    Elec­tric current
    • Rated residual oper­ating current Idn
      100 mA
    • Rated current
      63 A
    Archi­tec­ture
    • Number of poles
      3
    • Neutral posi­tion
      Right
    Capa­city
    • Number of modules
      3
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2,90 - 2,90 Nm
    • Nominal tight­ening torque down terminal
      2,90 - 2,90 Nm
    Connectivity
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      70 mm
    • Width
      35 mm
    • Depth
      92 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration BE363N
    PDF
    Hager RoHS report BE363N
    PDF

    Downloads

    • Image BE363N | Hager

      Product Image BE363N

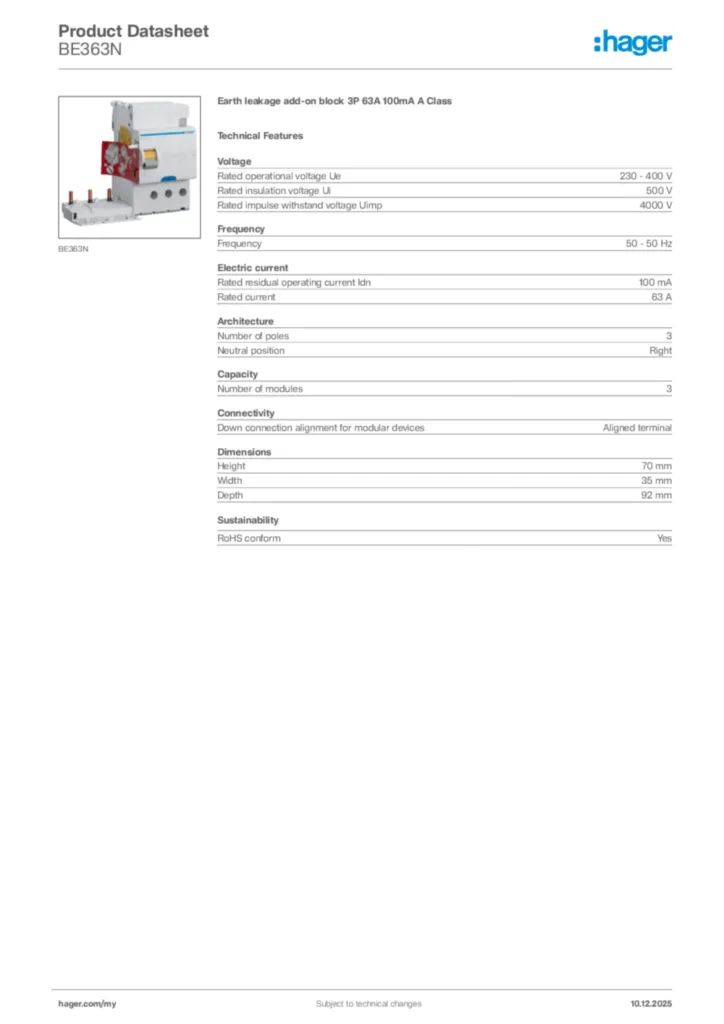

    • Product datasheet

      Image Hager Product data sheet BE363N | Hager

      Hager Product data sheet BE363N

      Earth leakage add-on block 3P 63A 100mA A Class

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29 | Hager

      Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29

      PDF
      1,61 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-11-10

      PDF
      920,46 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-12-07

      PDF
      1,14 MB
      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-11-12

      PDF
      452,70 kB
