Earth leakage add-on block 3P 25A 100mA A Class BE325N
EAN-Nr.
3250611353003
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 27 products available
Referenced by
-
NC300AMCB 3P 10kA C-0.5A 3M
-

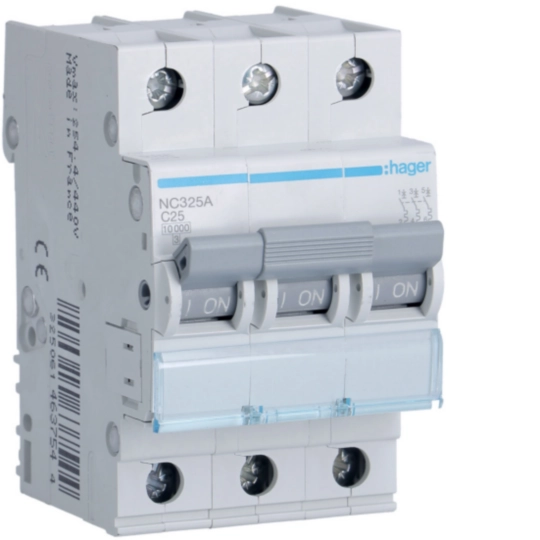

NC325AMCB 3P 10kA C-25A 3M
-
NC320AMCB 3P 10kA C-20A 3M
-

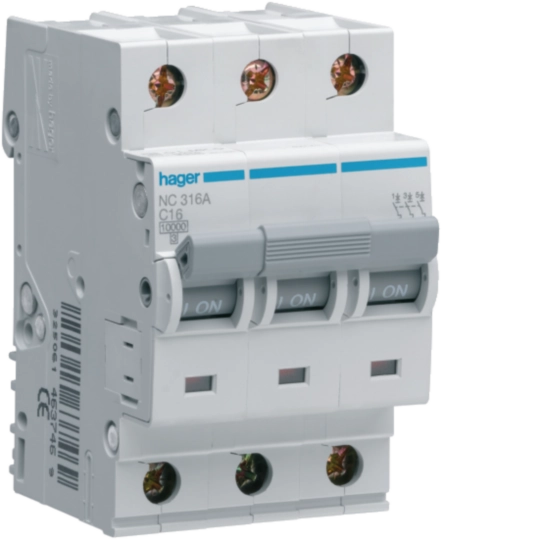

NC316AMCB 3P 10kA C-16A 3M
-
NC310AMCB 3P 10kA C-10A 3M
-
NC306AMCB 3P 10kA C-6A 3M
-

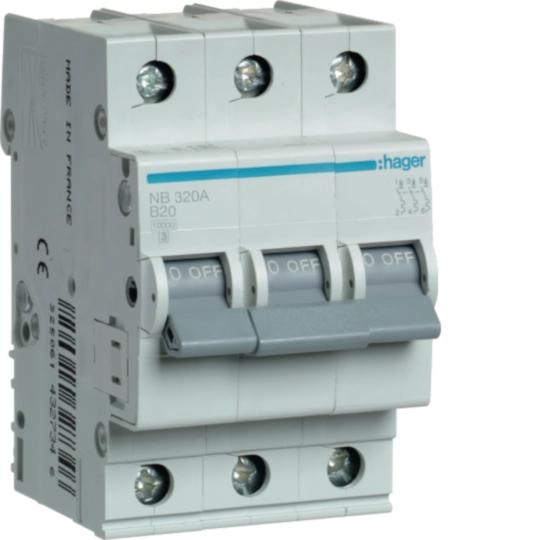

NB320AMCB 3P 10kA B-20A 3M
-
NB316A
MCB 3P 10kA B-16A 3M
-
NB310A
MCB 3P 10kA B-10A 3M
-
NB306A
MCB 3P 10kA B-6A 3M
-
NDN304AMCB 3P 10kA/15kA D-4A 3M
-
NDN302AMCB 3P 10kA/15kA D-2A 3M
-
NDN300AMCB 3P 10kA/15kA D-0.5A 3M
-
NRN306MCB 3P 25kA C-6A 3M
-
NDN310AMCB 3P 10kA/15kA D-10A 3M
-
NRN320MCB 3P 25kA C-20A 3M
-
NDN301AMCB 3P 10kA/15kA D-1A 3M
-
NRN310MCB 3P 25kA C-10A 3M
-
NRN325MCB 3P 25kA C-25A 3M
-
NRN316MCB 3P 25kA C-16A 3M

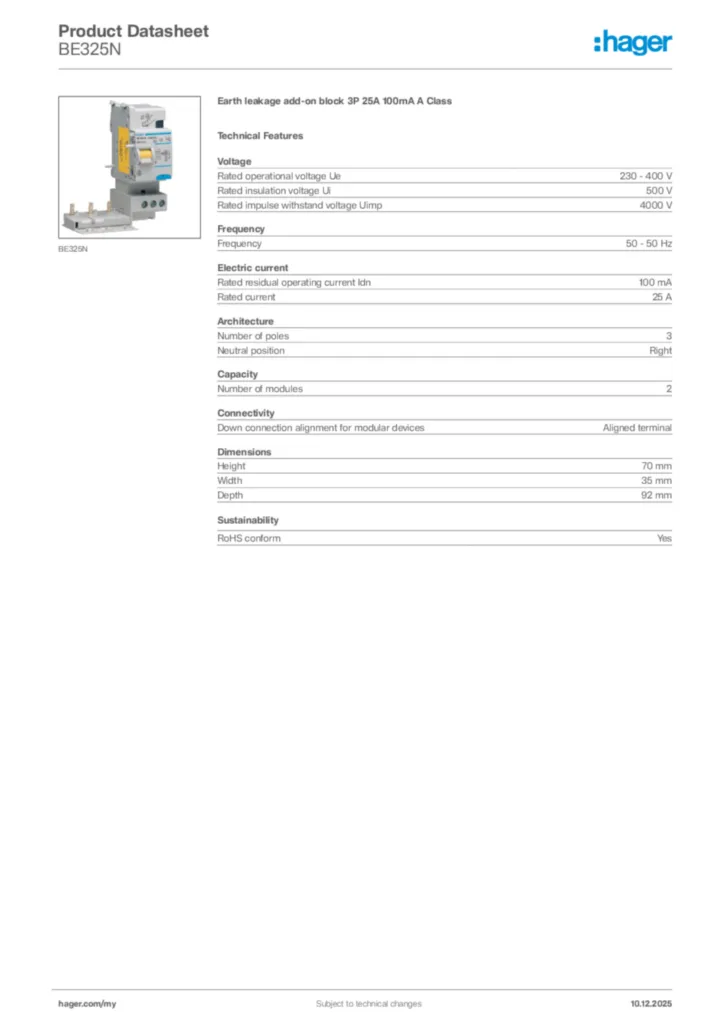

Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn100 mA
-
Rated current25 A
Architecture
-
Number of poles3
-
Neutral positionRight
Capacity
-
Number of modules2
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
More documentation
