Earth leakage add-on block 2P 63A 100mA A Class BE263N
EAN-Nr.
3250611352013
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 16 products available
Referenced by
-
NRN263MCB 2P 15kA C-63A 2M
-
NRN240MCB 2P 20kA C-40A 2M
-
NRN232MCB 2P 20kA C-32A 2M
-
NRN225MCB 2P 25kA C-25A 2M
-
NRN250MCB 2P 15kA C-50A 2M
-
NB232AMCB 2P 10kA B-32A 2M
-
NB240AMCB 2P 10kA B-40A 2M
-
NB250AMCB 2P 10kA B-50A 2M
-
NB263AMCB 2P 10kA B-63A 2M
-
NC232AMCB 2P 10kA C-32A 2M
-
NC240AMCB 2P 10kA C-40A 2M
-
NC250AMCB 2P 10kA C-50A 2M
-
NC263AMCB 2P 10kA C-63A 2M
-
NDN225AMCB 2P 10kA/15kA D-25A 2M
-
NDN240AMCB 2P 10kA/15kA D-40A 2M
-
NDN263AMCB 2P 10kA/15kA D-63A 2M
Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn100 mA
-
Rated current63 A
Architecture
-
Number of poles2
-
Neutral positionRight
Capacity
-
Number of modules2
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height70 mm
-
Width35 mm
-
Depth92 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

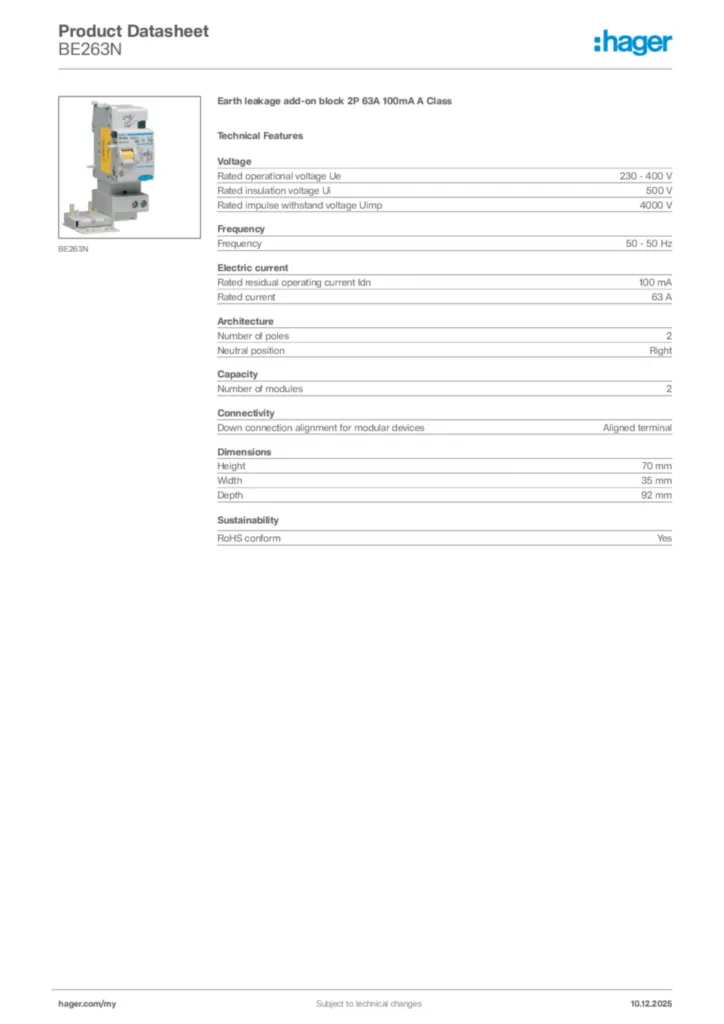

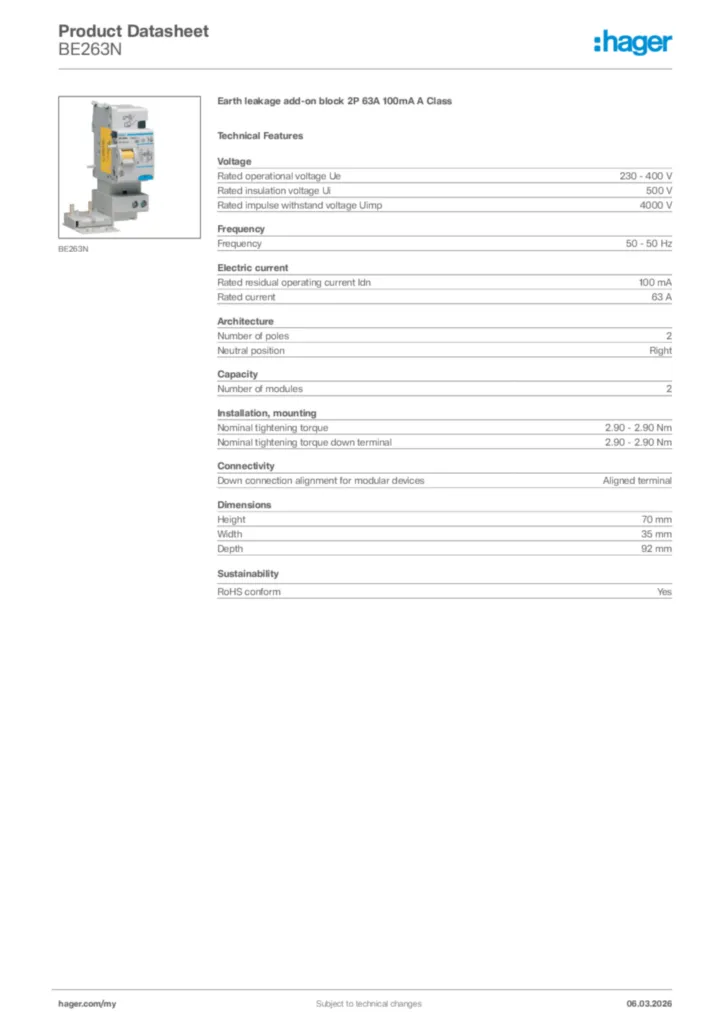

Hager Product data sheet BE263N
Earth leakage add-on block 2P 63A 100mA A Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
