Earth leakage add-on block 4P 25A 30mA AC Class BD426N
EAN-Nr.
3250611344513
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 29 products available
Referenced by
-
NB406AMCB 4P 10kA B-6A 4M
-

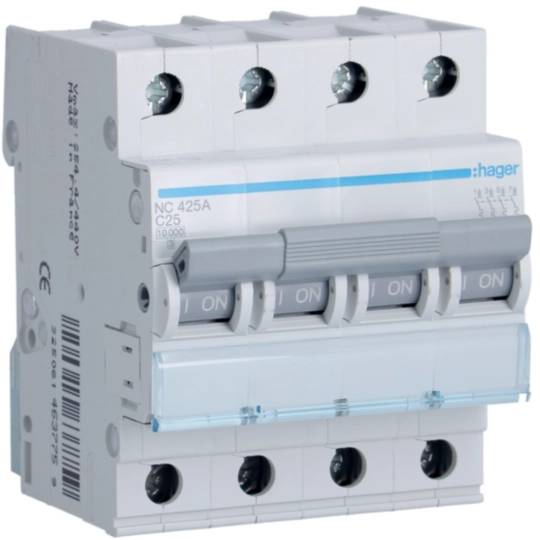

NC425AMCB 4P 10kA C-25A 4M
-
NC420A
MCB 4P 10kA C-20A 4M
-
NC416A
MCB 4P 10kA C-16A 4M
-
NC410A
MCB 4P 10kA C-10A 4M
-
NC406A
MCB 4P 10kA C-6A 4M
-
NC404A
MCB 4P 10kA C-4A 4M
-
NC402A
MCB 4P 10kA C-2A 4M
-
NB420A
MCB 4P 10kA B-20A 4M
-
NB416A
MCB 4P 10kA B-16A 4M
-
NB410A
MCB 4P 10kA B-10A 4M
-
NDN401AMCB 4P 10kA/15kA D-1A 4M
-
NDN403AMCB 4P 10kA/15kA D-3A 4M
-
NRN425MCB 4P 25kA C-25A 4M
-
NRN410MCB 4P 25kA C-10A 4M
-
NRN416MCB 4P 25kA C-16A 4M
-
NDN410AMCB 4P 10kA/15kA D-10A 4M
-
NDN420A
MCB 4P 10kA/15kA D-20A 4M
-
NDN425A
MCB 4P 10kA/15kA D-25A 4M
-
NRN406MCB 4P 25kA C-6A 4M
Technical characteristics
Architecture
-
Neutral positionRight
-
Number of poles4
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current25 A
Frequency
-
Frequency50 - 50 Hz
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height70 mm
-
Width44 mm
-
Depth83 mm
