KNX room cont., colourdisplay, intg bus coupling unit, KNX 80660100
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See all (9)
Mandatory accessories
-
80960182Cover for KNX thermostats + room cont.s, S.1/B.3/B.7, white glossy
-
80960180Cover for KNX thermostats + room cont.s, S.1/B.3/B.7, p. white, matt, plastic
-
80960179Cover for KNX thermostats + room cont.s, K.1, p. white glossy
-
80960175Cover for KNX thermostats + room cont.s, K.1, ant., matt
-
80960173ATC deco cover K.x stainless steel
-
80960171Cover for KNX thermostats + room cont.s, K.5, al., matt, lacq.
-
80960129Cover for KNX thermostats + room cont.s, Q.x, p. white velvety
-
80960126Cover for KNX thermostats + room cont.s, Q.x, ant. velvety, lacq.
-
TGA200Power supply 24 V DC 1A
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer10 mA
Dimensions
-
Built-in depth32 mm
-
Built-in depth flush-mounted boxes26 mm
-
Height71 mm
-
Width71 mm
-
Depth46,70 mm
Equipment
-
Number of actuation points3
Controls and indicators
-
With LED indicationYes
Materials
-
ColourBlack
-
RAL code9005
-
MaterialThermoplastic
Screen
-
With displayYes
Texts
-
FunctionWith keylock, With holiday switching, With frost protection function
-
Installation modeWith spreader claws, For flush-mounted and hollow wall mounting, For single mounting, For vertical mounting
-
TemperatureAdditional connection for external temperature sensor, Comfort, standard and night temperature, Temperature measurement via internal and/or connectable Temperature sensor with average determination
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

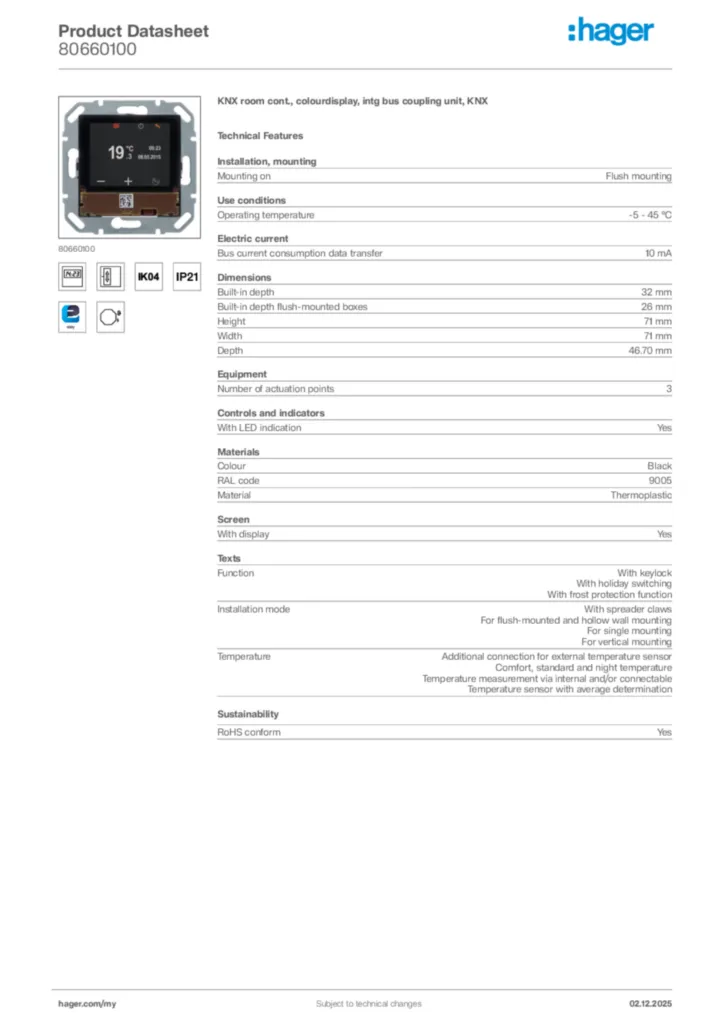

Hager Product data sheet 80660100
KNX room cont., colourdisplay, intg bus coupling unit, KNX
PDF -
Application Guide
Application description ETS for 80440100-80660100 - KNX thermostat/room controller (EN, 2021-12)
Application Guide en-GB 2021-12-12
PDF11,67 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-02-26
PDF900,59 kB
Declaration of Conformity
Declaration of conformity International 2021-02-26
PDF900,73 kB
EU Declaration of Conformity
Declaration of conformity en-GB, fr-FR 2024-01-04
PDF317,97 kB
