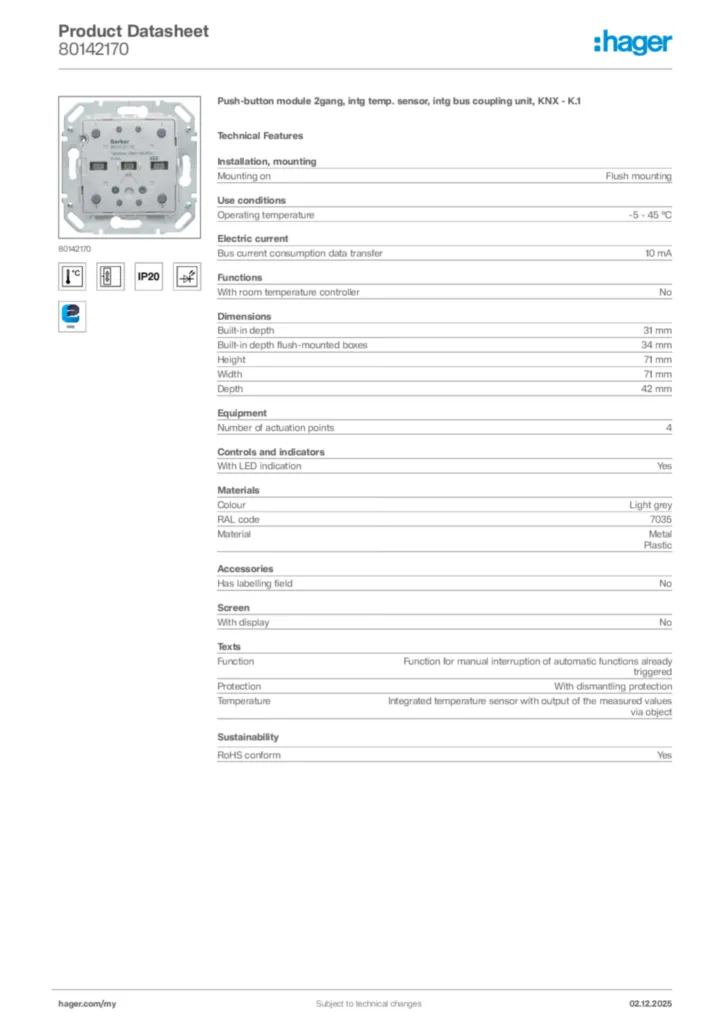

Push-button module 2gang, intg temp. sensor, intg bus coupling unit, KNX - K.1 80142170
EAN-Nr.
3250617153782
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer10 mA
Functions
-
With room temperature controllerNo
Dimensions
-
Built-in depth31 mm
-
Built-in depth flush-mounted boxes34 mm
-
Height71 mm
-
Width71 mm
-
Depth42 mm
Equipment
-
Number of actuation points4
Controls and indicators
-
With LED indicationYes
Materials
-
ColourLight grey
-
RAL code7035
-
MaterialMetal, Plastic
Accessories
-
Has labelling fieldNo
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
