B.IQ push-button 3gang thermostat, display, KNX - B.IQ, p. white, matt, plastic 75663599
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
75040001
Bus coupling unit flush-mtd, KNX
Optional accessories
-
Labelling material for domestic switching devices 1 products available
Compatible products
-
Referenced by 1 products available
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Dimensions
-
Height119,60 mm
-
Width88,50 mm
-
Depth15 mm
Equipment
-
Number of actuation points8
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialThermoplastic
-
Surface finishMatt
Accessories
-
Has labelling fieldNo
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer, blind and thermostat functions, With valve protection function, Button help function can be activated
-
Operating modeController operating modes: comfort, standby, night and frost/heat protection mode
-
ProtectionWith dismantling protection
-
TemperatureTemperature measurement via internal Temperature sensor and/or external communication object (weighting ratio parameterisable), Provision of the internal temperature value via communication object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

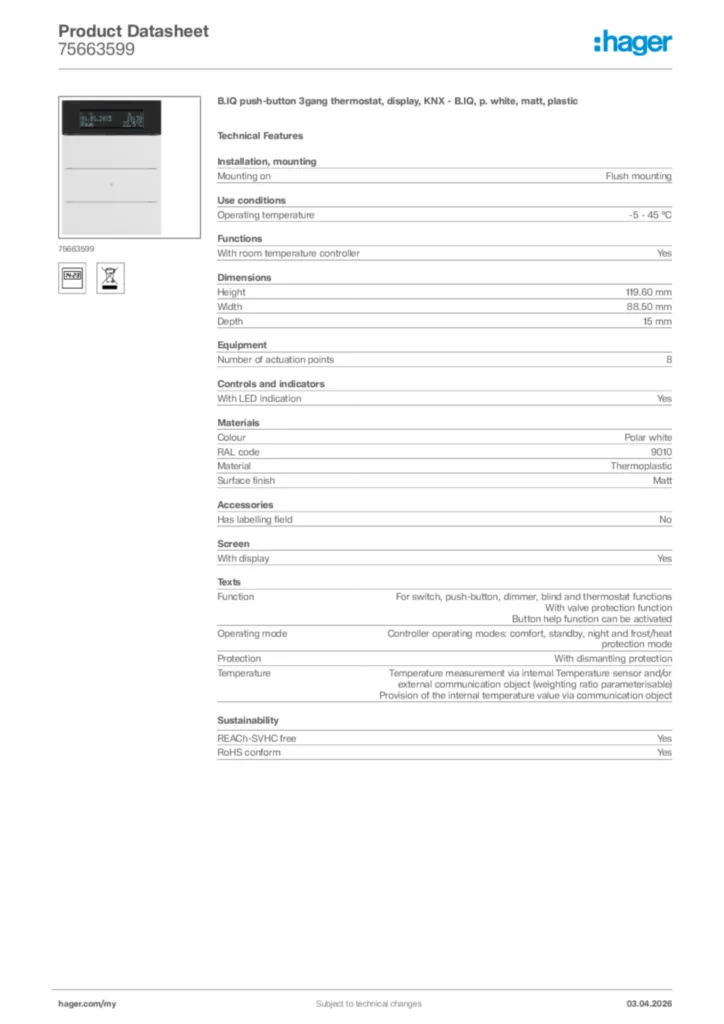

Product datasheet
Hager Product data sheet 75663599
B.IQ push-button 3gang thermostat, display, KNX - B.IQ, p. white, matt, plastic
PDF -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF269,33 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF269,68 kB
