Touch sensor 2g thermostat, display, intg bus coupl. , KNX-R.1, glass p.white 75642060
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 1 products available
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Power
-
Current consumption23 mA
Dimensions
-
Built-in depth12,90 mm
-
Built-in depth flush-mounted boxes16 mm
-
Height152 mm
-
Width81 mm
-
Depth23 mm
Equipment
-
Number of actuation points4
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialGlass
-
Surface finishGlossy
Accessories
-
Has labelling fieldNo
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer, blind and thermostat functions, With valve protection function
-
Installation modeFor vertical mounting
-
Operating modeController operating modes: comfort, standby, night and frost/heat protection mode
-
TemperatureAdditional connection for external temperature sensor, Temperature measurement via internal Temperature sensor or external communication object
-
VoltageOperation with non-choked output of KNX voltage supply possible (pay attention to current consumption), Separate auxiliary power supply needed
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

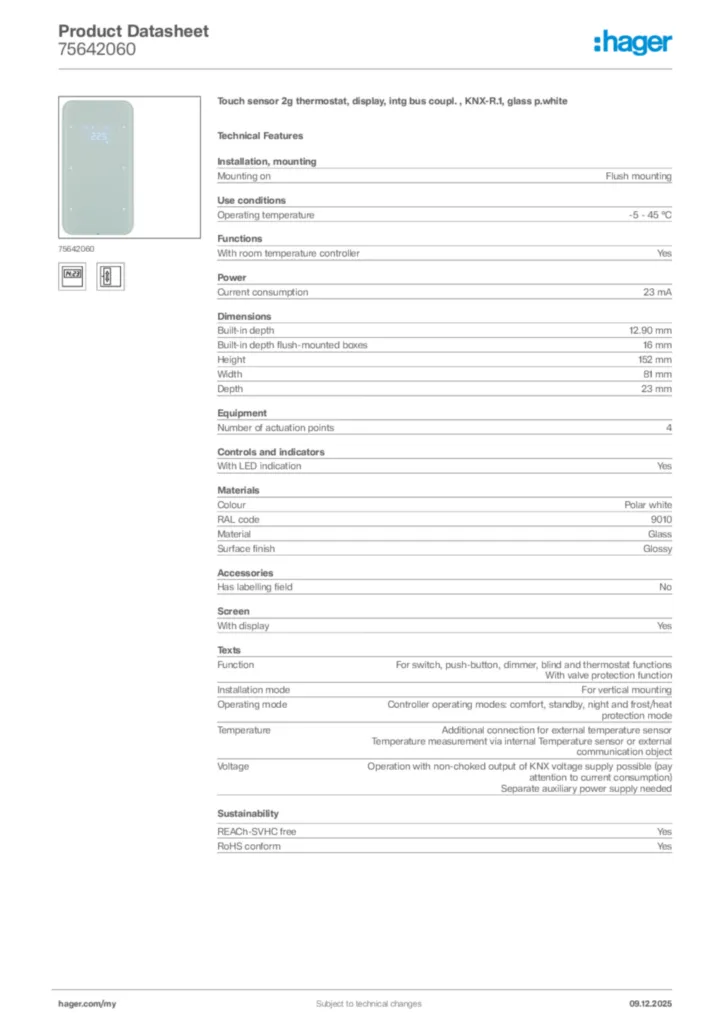

Product datasheet
Hager Product data sheet 75642060
Touch sensor 2g thermostat, display, intg bus coupl. , KNX-R.1, glass p.white
PDF -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-08-24
PDF281,74 kB
Declaration of Conformity
Declaration of conformity International 2021-08-24
PDF278,28 kB
