Touch sensor, 2-gang comf, intg bus coupling unit, KNX - R.1, glass p. white 75142860
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 1 products available
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Functions
-
With room temperature controllerYes
Power
-
Current consumption12,50 mA
Dimensions
-
Built-in depth12,90 mm
-
Built-in depth flush-mounted boxes16 mm
-
Height152 mm
-
Width81 mm
-
Depth23 mm
Equipment
-
Number of actuation points4
Controls and indicators
-
With LED indicationYes
Materials
-
ColourPolar white
-
RAL code9010
-
MaterialGlass
-
Surface finishGlossy
Accessories
-
Has labelling fieldNo
Screen
-
With displayYes
Texts
-
FunctionFor switch, push-button, dimmer and shutter functions, Blocking function for sensor surface e.g. for cleaning the glass surface
-
Installation modeFor vertical mounting
-
TemperatureAdditional connection for external temperature sensor, Integrated temperature sensor for operation as controller extension unit, Temperature measurement via internal Temperature sensor or external communication object
Scope of delivery
-
Bus connection includedYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

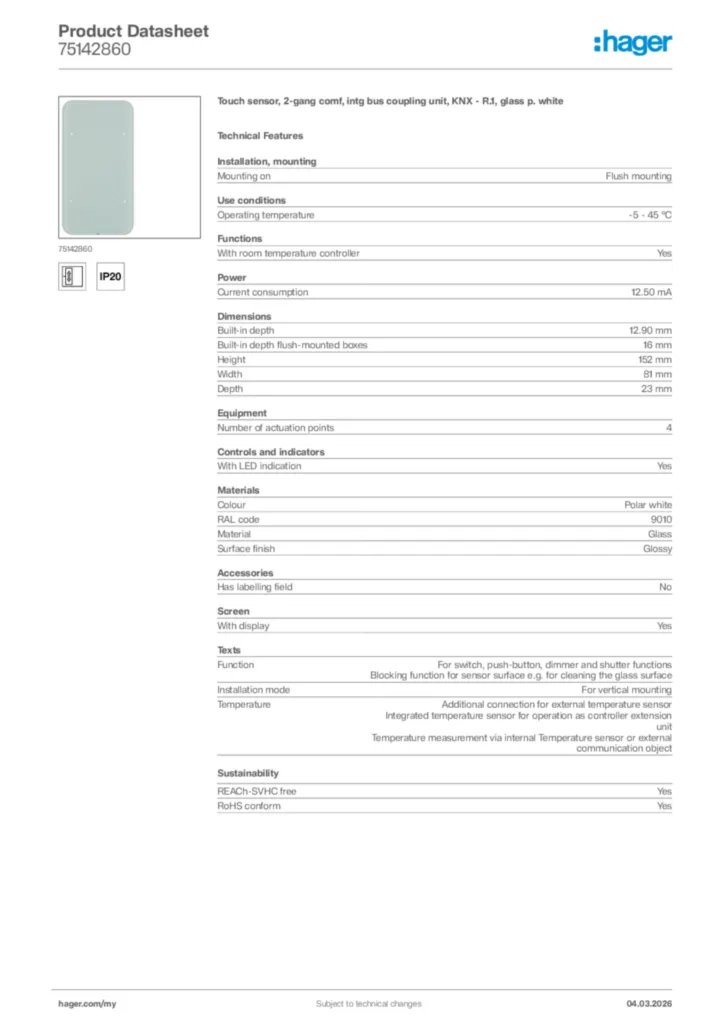

Hager Product data sheet 75142860
