Push-button change-over contact illuminated 5036
EAN-Nr.
4011334030508
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical characteristics
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Architecture
-
Number of poles1
Materials
-
MaterialMetal, Plastic
-
TransparentNo
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth42 mm
-
Built-in depth31 mm
-
Built-in depth flush-mounted boxes34 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Accessories
-
Has labelling fieldNo
Downloads
-
Product datasheet

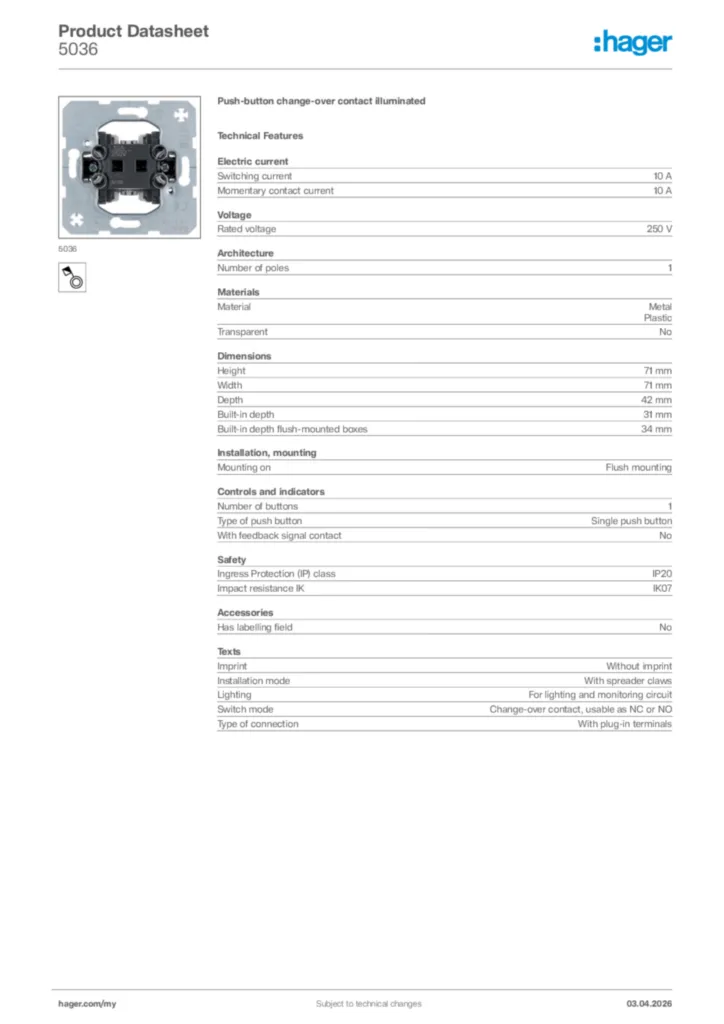

Hager Product data sheet 5036
Push-button change-over contact illuminated
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1015
PDF334,72 kB
