EAN-Nr.

4011334030294

Packaging

10 Pieces

Rocker push-button NO contact Module insert 5031

No longer available

Technical characteristics
Documentations

Download the sheet

Technical characteristics

Switching current

10 A
Momentary contact current

10 A

Rated voltage

250 V

Frequency

50 - 60 Hz

Control/operation element

Rocker
Number of poles

1

Material

Metal, Plastic
Transparent

No

Height

70,80 mm
Width

70,80 mm
Depth

41,60 mm
Built-in depth

30 mm
Built-in depth flush-mounted boxes

35 mm

Mounting on

Flush mounting

Number of buttons

1
Type of push button

Single push button
With feedback signal contact

No

Ingress Protection (IP) class

IP20
Impact resistance IK

IK07

Has labelling field

No

Downloads

Product Image 5031
Product datasheet

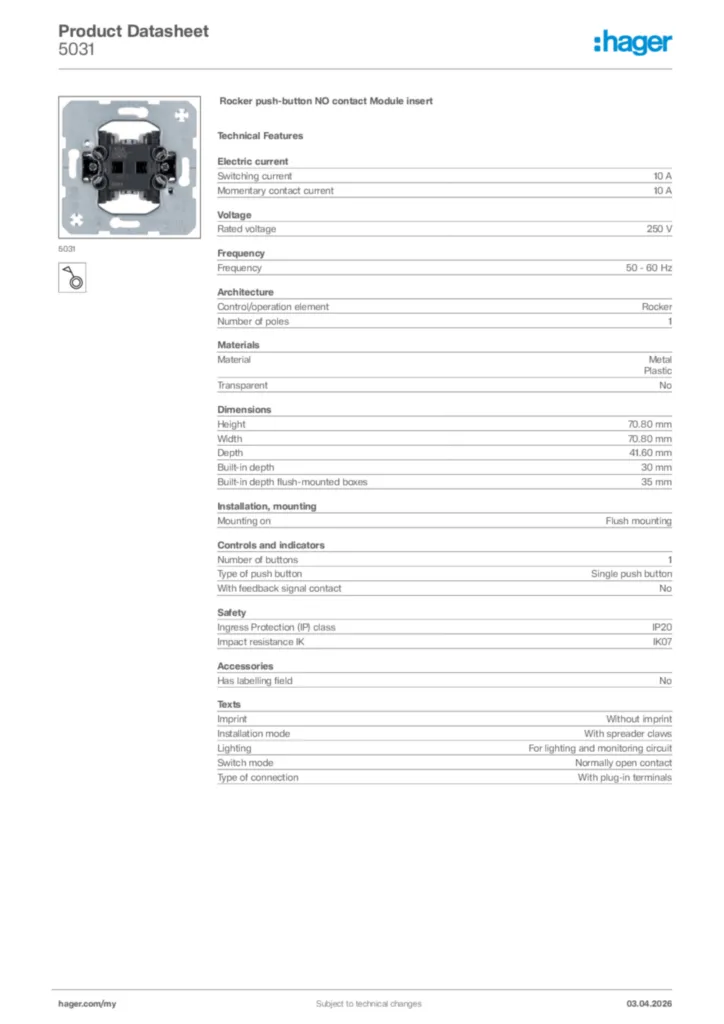

Hager Product data sheet 5031

Rocker push-button NO contact Module insert

PDF
Declaration of conformity

EU Declaration of Conformity

dc24-1015

PDF

334,72 kB

More documentation
