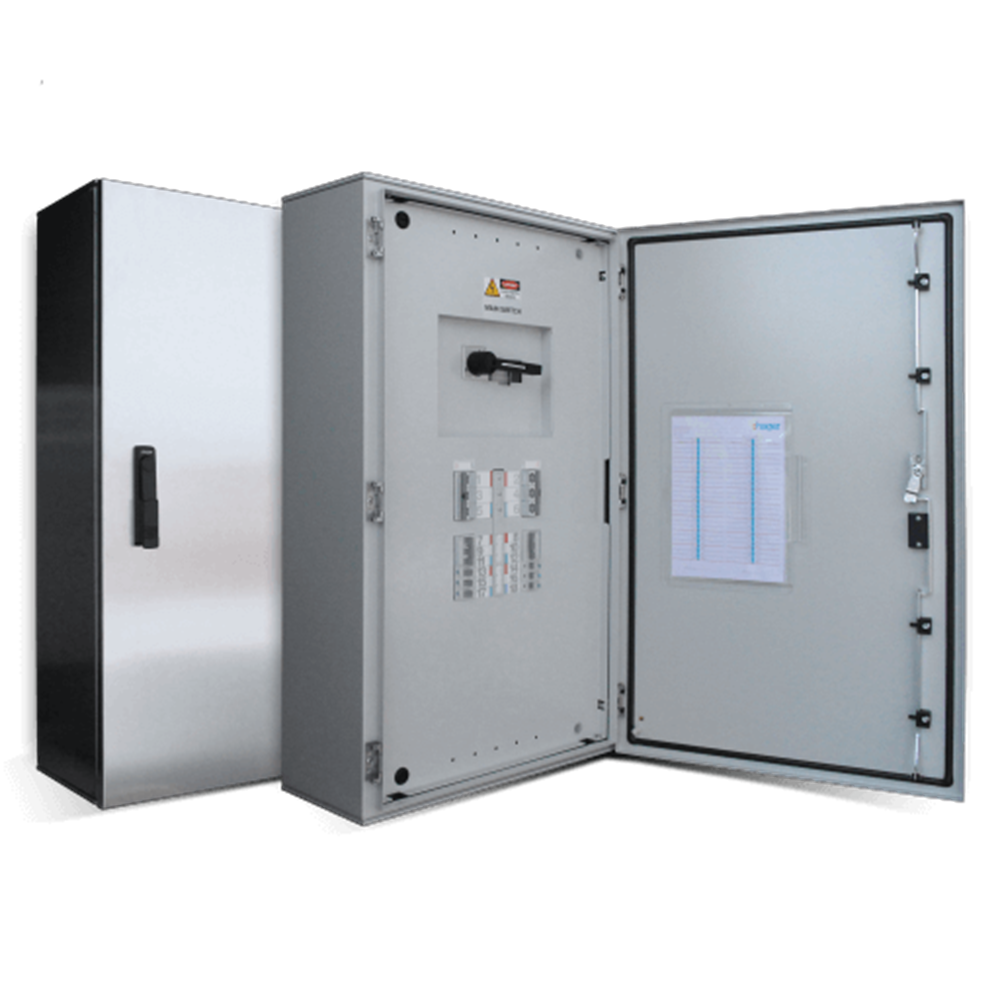

performa Panelboards
Our performa panelboard range is a comprehensive range, offering a robust design to accomodate your commercial installation solutions.
Designed and assembled in Australia, our boards can either be supplied standard or entirely loaded and wired. Available up to 400A with various chassis options, the range can house an array of compatible devices such as energy meters and protection devices.
apex and apex PLUS
elite and elite 400
-
Apex and apex Plus advantages for you:elite and elite 400 advantages for you:
-
Choice of incomer switches or MCCB devicePositive MCB alignment
-
2 x 8 pole DIN with optional 24 pole DIN sectionelite: 2 x 8 pole DIN with additional 24 pole DIN section elite 400: 2 x 7 pole DIN with additional 24 pole DIN section
-
Top and bottom fedtop and bottom fed
-
IP43IP66
-
Hinged, removeable and reversible door and escutceonHinged, removeable and reversible door and escutceon
-
Direct connection (No switch) option250A up to 400A rated current
Features and Benefits
At the core of
the installation

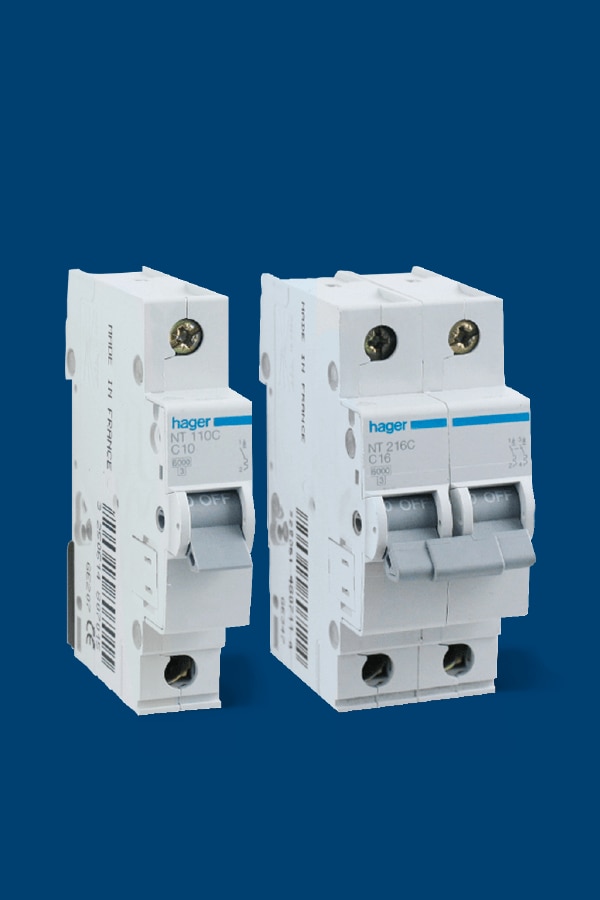

Commercial MCB's
Provides added protection against overloads and short circuits in commercial and light industrial applications.
Advantages for you
- 6kA and 10kA breaking capacity supplied as standard offer.
- Reinforced terminals ensure maximum torque.
- Common accessories throughout the range: 2 to 63A

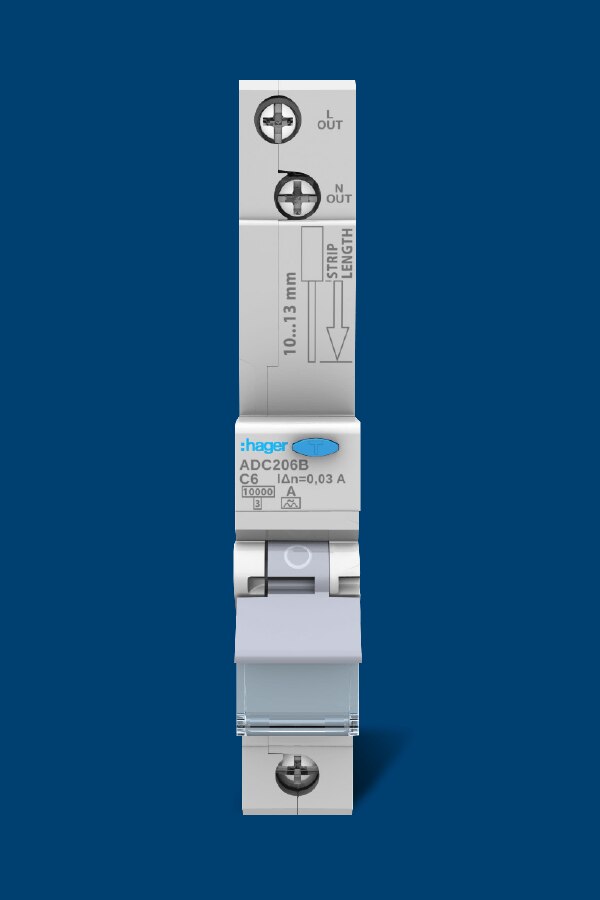

Commercial RCBO's
Our commercial RCBO range is available in C Curve up to 50A in 6kA and 10kA, and D Curve up to 32A in 10kA.
Advantages for you
- Single module results in reduced footprint within the panelboard.
- Range of accessories
- 1m neutral fly lead

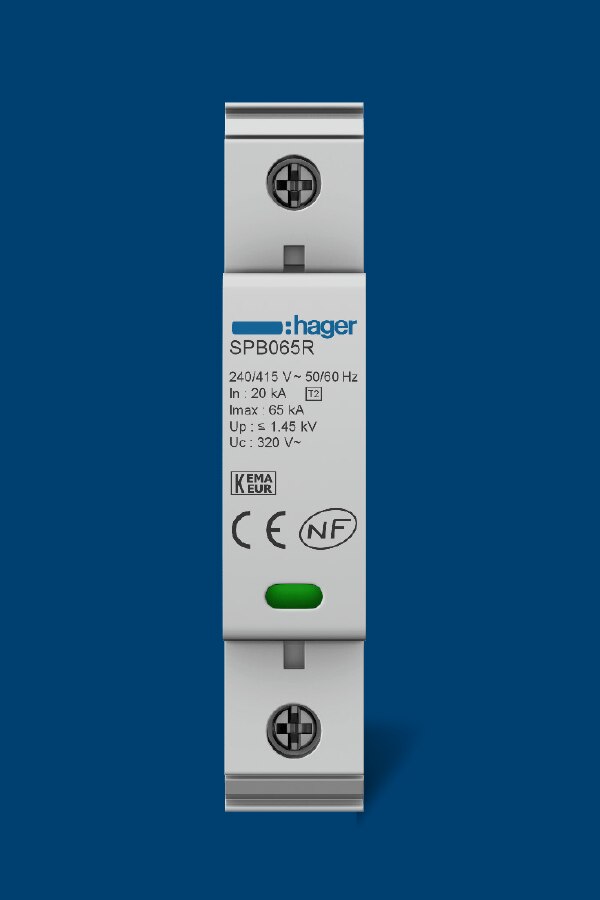

Surge Protection Devices
Surge Protection Devices protect the entire electrical installation and any equipment connected to the installation from Transient Overvoltages. We offer Type 1, Spark Gap and Type 2 Surge Protection Devices.
Advantages for you
- You can grow your business and benefit the safety of your customers and their home at the same time.
Earth Leakage Protection
Save space, time and labour with our 1 module Add-On Block and 3 phase MCB combinations. Our Add-On Block safeguards the circuit and removes the need to wire between DIN mounted RCD and MCB.
Advantages for you
- Small footprint as RCD + 3 pole MCB combination is only 4 poles wide.
- Suits any Hager 6kA and 10kA commercial MCB up to 63A.

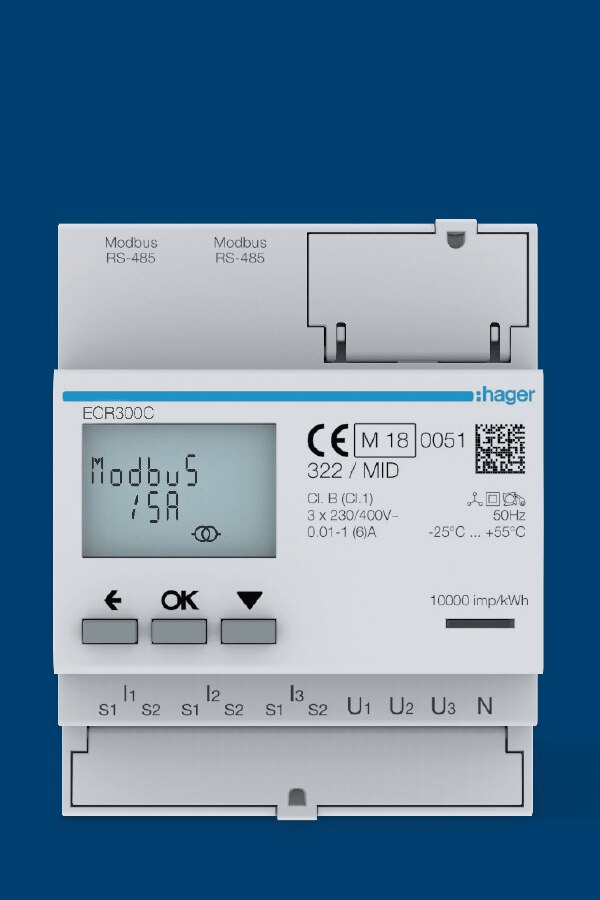

Energy Meters

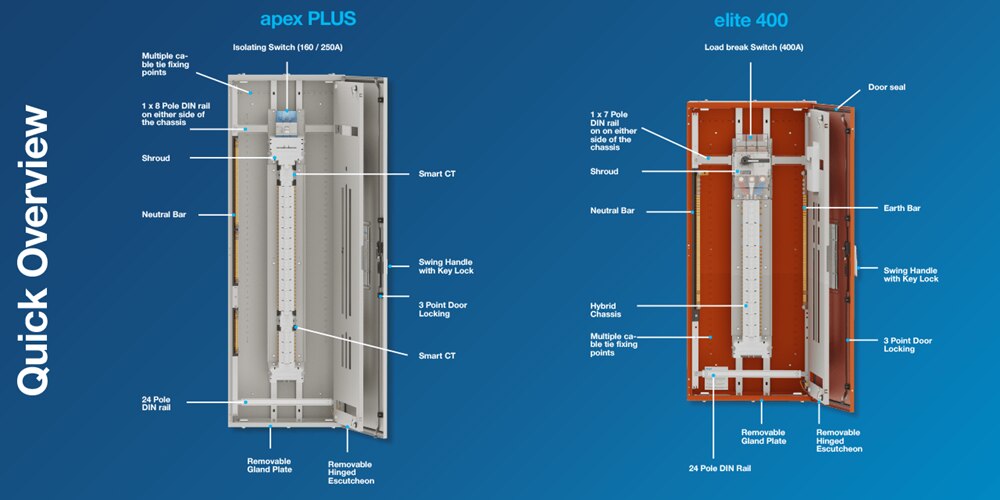

Quick overview
Download
-
PDF11.3 Mb -
PDF5.5 Mb
View our range
JPA2400NSSTW
JPD6000NSSDW
JPD3618NSSDW
JPE4800S25DW
JPE3012S25DW
