Residential Installations
Alterations, additions and repairs
2.6.3.2.2 Installation requirements Australia only
RDCs shall be installed at the switchboard at which the final subcircuit originates.
2.6.3.2.2 Domestic & Residential installations Australia only
30mA RCDs shall be provided for all final subcircuits.
![Traditional brick house with green garden and fencing](https://assets.sc.hager.com/au/-/media/project/hagerdeep/australia/hager/australia/003-inspiration-knowledge/aa-wiring-rules/residential-installations/residential-installations-image-header.jpg?h=640&la=en-au&hash=C5A5ECE34D15E2337A7081469296B70B)
Alterations and additions

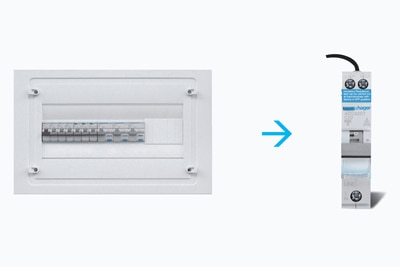

In accordance with Clause 2.6.3, where a switchboard replacement is carried out OR where any alteration to an existing final subcircuit is undertaken, additional RCD protection shall be installed.

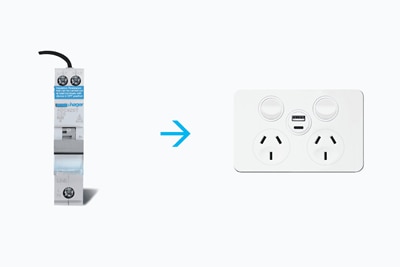

Where socket-outlets are added to an existing sub-circuit, RCD protection need only be fitted at the commencement of the additional wiring.
Repairs

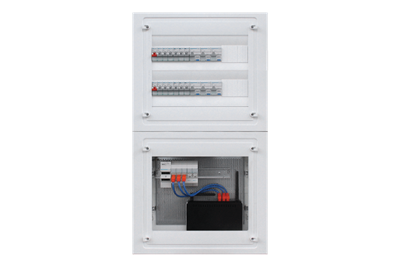

- All sub-circuits protected by RCBOs
- Fast installation - all devices on one busbar
- Smallest footprint using single module RCBOs
- Individual sub-circuit protection - no risk of loss of supply to multiple sub-circuits
Prohibited zone
in wet areas

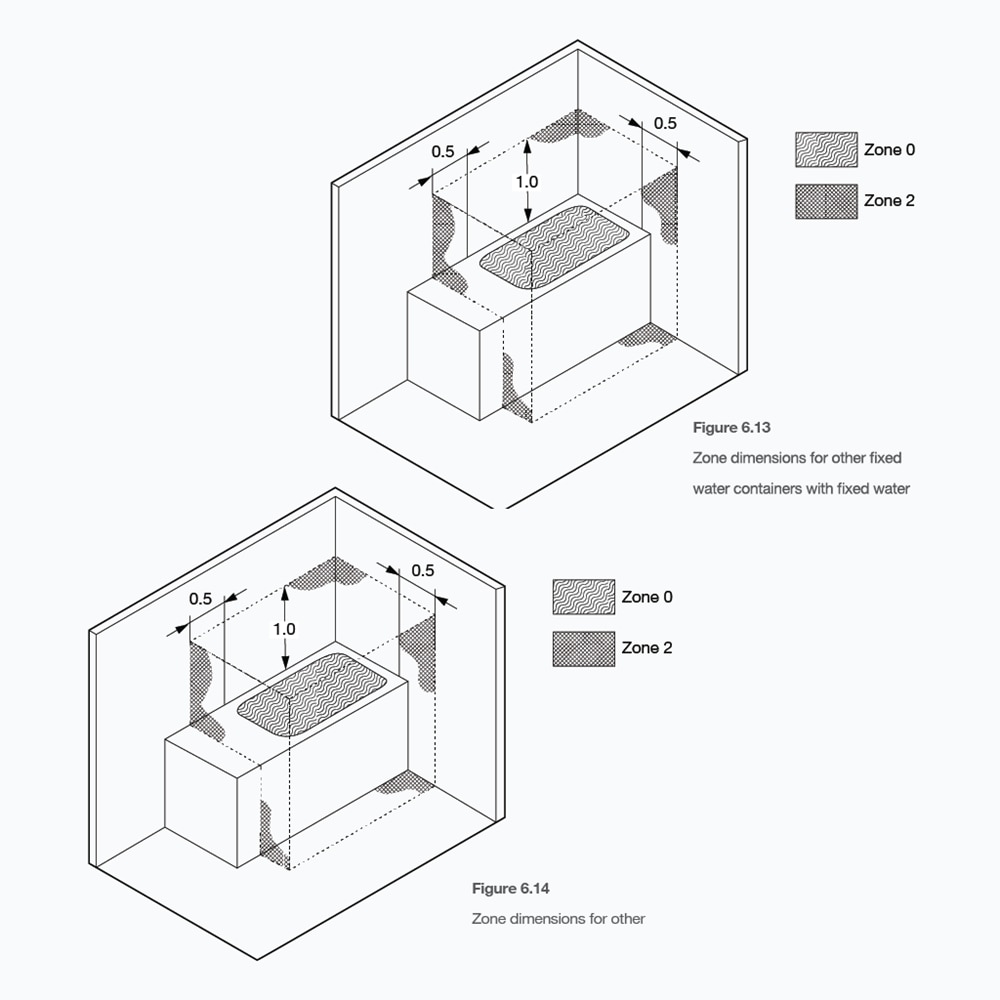

In baths, showers and other fixed water containers there are 4 zones each covering different electrical devices and many individual specific scenarios.
Please ensure you check the AS/NZS 3000:2018 wiring rules section 6.2 for each individual scenario. Examples of fixed water container scenarios are given at right.
